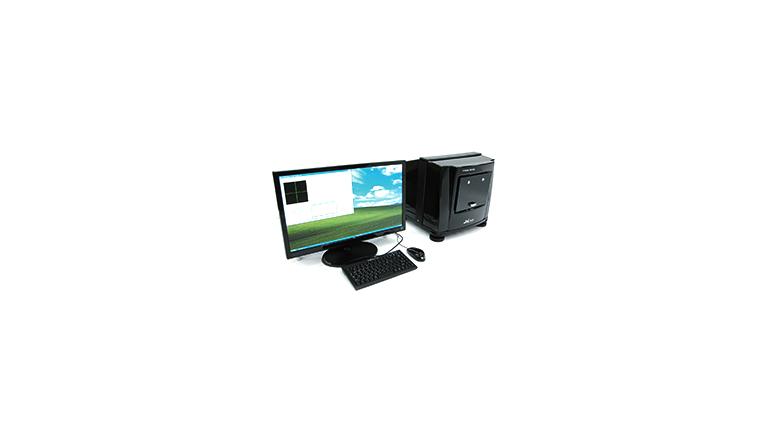

Residual Stress Tester
Model Name
-
Series
The Film Measure Equipment
Data
Residual Stress Tester
Manufacturer information
provider logo
J&L TechDLC coating products manufacturer, DFC coating, Hard coating, Thin film analysis equipment, Scratch tester and more
Problem with product info?
Update request
Manufacturer
J&L Tech
Brand
-
SKU
55508
Product Name
Residual Stress Tester
Model Name
-
Size
-
Weight
-
Product Details

In case of thin film has compress stress of tensile stress, tester measures deforming rate of the board-thin film complex and calculates the residual stress.



Characteristics of RESIDUAL STRESS TESTER

• Automatic control of X-Y axis
• Compute residual stress by usage of thin film's curvature Stoney formula
• (Able to measure of amorphous state)
• Easy to control



Precautions

• Measuring test: Circuit board needs to use Si-wafer with 250 ± 15㎛ thickness, length better be 10 times compare to width.
• Thickness of thin film has to be slimmer than 1/50 size of circuit board.



Specification of RESIDUAL STRESS TESTER

Range of Curvature 2m ~ 100m
Range of Measurement 60Mpa ~ 10Gpa
Resolution of Measurement 10Mpa
Range of Measurement error < 10%
Length of Maximum Scan 30mm
Stap of Minimum Scan 0.2mm
Thickness of Wafer 100um ~ 800um
Thickness of Coati ng film 0.05um ~ 10um
Scan Stage Stroke 30mm
Scan Stage Resolution 25um
Loading Stage Stroke 140mm
Loading stage Resolution 0.5mm
Speed of Measurement 0.02mm/s
Size of Test Piece 40mm[length] x 4mm[width]
Specification of PSD Sensor 5um
Device Size 500[W] x 500[D] x 500[H] mm
Weight 30kg
Power consumption 150W
