You can always be sure of the greatest possible hygiene

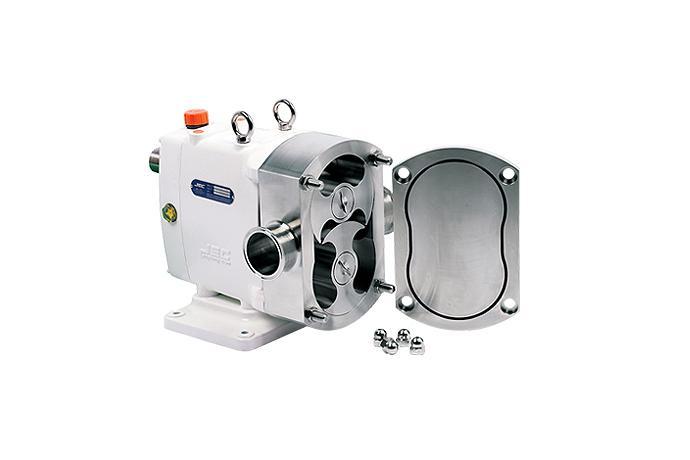

ZL series are designed for broad applications spectrum covering dairies, foods, beverages, pharmaceuticals, cosmetics, bakeries, detergents, liquors, chemical industries and LCD/PDP manufacturing etc. They are designed specifically for conveying fluids in the low to high viscosity range with gentle product handling.
With high grade 0.6㎛Ra surface finish, unique seal and casing design, ZL series are suitable for Cleaning In Place (CIP) and offer exceptional levels of hygiene.
Wetted parts are made of SS 316L.
Our broad range of seal options such as mechanical seal, O-ring seal and Lip seal provides optimal solution for your need and application.
Optimal CIP is realized with O-ring position which minimizes dead-end between front cover and casing.
JEC always provides various rotors to meet diverse customer’s requirements (Single wing, Bi-wing, Bi-lobe, Tri-lobe, Multi-lobe, Heli-lobe and Spur gear). A variety of connection options are available such as SMS, RJT, DIN, ISO, Tri-Clamp and Flanges.
Performance Curve
JEC Rotary Lobe Pumps are versatile for various application
ㆍEasy installation and maintenance
ㆍApproved EHEDG and 3-A, 1935/2004, FDA, CE and ATEX standards
ㆍInterchangeable rotor in field types without adjusting clearance
ㆍThermal jacket hole plug mounted as optional
ㆍSingle wing, bi-wing, tri-lobe, multi-lobe, heli-lobe, and spur-gear are available
ㆍIdeally designed for hygienic process are available and easily interchangeable in field to seal types due to unique front loading seal design
ㆍMirror finish-standard 0.6 ㎛Ra optional 0.4 ㎛Ra (16Ra, 192grit)
ㆍExternally mounted seal for hygienic application
ㆍBalanced seal and multi-spring for rotary seal ring drive
ㆍSingle mechanical seal, flushed mechanical seal, lip seal, O-ring seal, double mechanical seal
ㆍMaximum pressure : 290psi(20bar)
ㆍMaximum capacity : 440GPM(100 ㎥/hr)
