product Image
Rotary Pumps
Model Name
JTP
Data
JTP truck pump catalogue
Manufacturer information
provider logo
JEC PUMPS

Sanitary pump manufacturer, Rotary pump, Centrifugal pump, Blending system and more

Problem with product info?
Update request
Manufacturer
JEC PUMPS
Brand
-
SKU
31057
Product Name
Rotary Pumps
Model Name
JTP
Size
-
Weight
-
Product Details

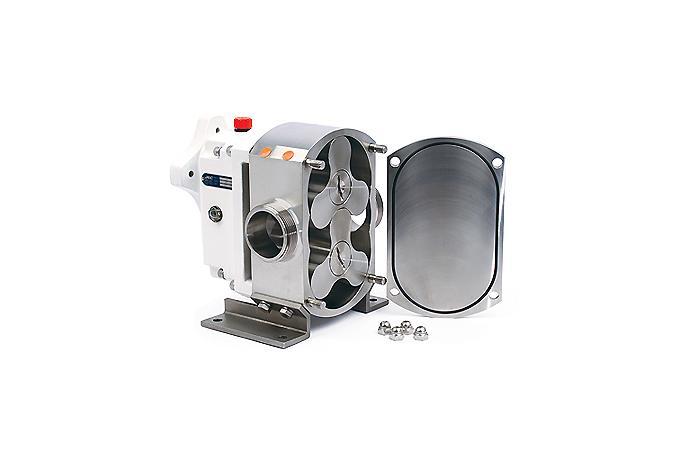

JEC PUMPS Rotary Pumps JTP

JTP series hailed as the best truck pump in the world

JTP series provide higher capacity, higher pressure and unmatched efficiency on a variety of viscosities enabling faster unloading and loading. Optimal hygienic construction is realized with profiled gasket system, high grade 0.6㎛Ra surface finish and minimized-end seal area.
Wetted parts are made of SS 316L

Front Loading Seal makes faster and easier maintenance without removing the rotor housing.

JTP series have lighter body, higher efficiency and more saving fuel consumption than other Truck pumps.
Female drive shaft accepts direct-coupled SAE B or C flanged hydraulic motors as an alternative to the standard PTO male shaft (JTP330 series only).


Performance Curve

JEC PUMPS Rotary Pumps JTP 1

JEC Road Tanker Pumps are specially designed for wide application of transportation service

ㆍEasy to installation and maintenance
ㆍApproved EHEDG and 3-A, 1935/2004, FDA, ATEX standards
ㆍCover high or low viscosity products
ㆍQuick strip and easy to clean place
ㆍLess downtime for interchanging seals due to front loading seal design
ㆍLow shearing action
ㆍFlexible and two method of mounting
ㆍMirror finish-standard 0.6 ㎛Ra optional 0.4 ㎛Ra (16Ra, 192grit)
ㆍExternally mounted seal for hygienic application
ㆍBalanced seal and multi-spring for rotary seal ring drive
ㆍMaximum pressure : 218psi(15bar)
ㆍMaximum capacity : 214GPM(48.7 ㎥/hr)
ㆍWide application for food, dairies, melted-sugars, pharmaceuticals & chemical medias and cosmetic products etc.
