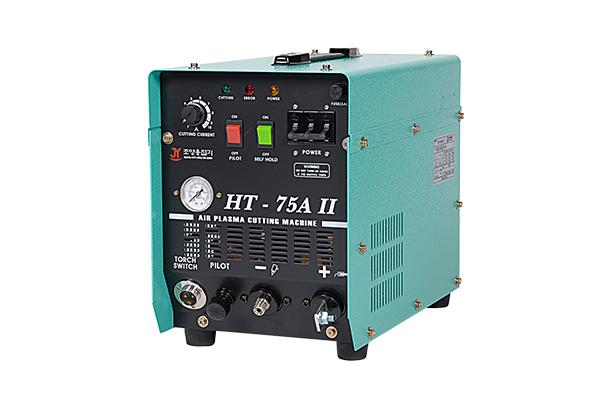

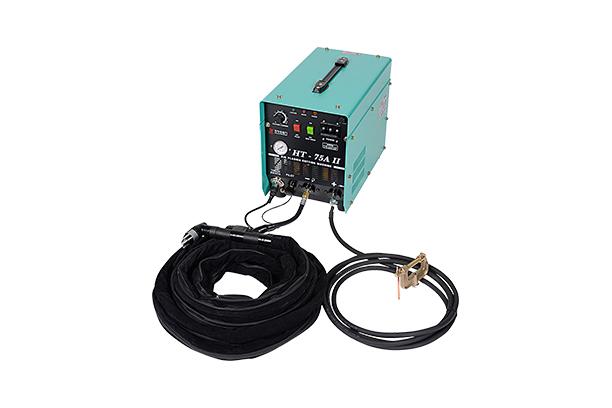

PLASMA Cutter (HT Series)
Model Name
HT-75A II
Series
PLASMA Cutter
Data
-
Manufacturer information
provider logo
JOYOUNG WELDING

Welding M/C manufacturer, DC arc welder, TIG, Argon, CO2, MAG welder, Plasma cutter, Mixed type gas welder and more

Problem with product info?
Update request
Manufacturer
JOYOUNG WELDING
Brand
-
SKU
130061
Product Name
PLASMA Cutter (HT Series)
Model Name
HT-75A II
Size
-
Weight
-
Product Details

Special Feature

* High-speed cutting of thin or medium plates
* The smallest size in the same grade in the country issuitable to field work
* Built-in self-inspection function of the disorder of the machine
* Trans design based on long experiences shows low noise, high cutting performance, and small nozzle abrasion
* Possible single-phase or triple-phase input



 Specification

MODE

HT-75A II (220V 전용)

HT-75A II (겸용)

 Output Current

A

75

 75

 Input Voltage

V

 1 / 3 Phase,  220V ± 10%

1 / 3 Phase, 220V/380V/440V ± 10%

 Rated Frequency

Hz

50 / 60

50 / 60

 Rated Input

KVA

10.6

10.6

Rated load Voltage

V

112

 112

Output Current range

A

25-75

 25-75

Duty Cycle

%

50

 50

Dimension (WxDxH)

W*D*H (m/m)

263 x 470 x 352

 263 x 470 x 352

Weight

kg

23.6

24.6

※ Product specifications can be changed unexpectedly for product performance improvement.
