Arc Motors
Model Name
JTKA Series
Series
Linear Motors
Data
Arc Motors
Manufacturer information
provider logo
Justek

Linear motor, Stage, Servo driver, Rotary DD motor, Multi controller, High precision motion stag and more

Problem with product info?
Update request
Manufacturer
Justek
Brand
-
SKU
55447
Product Name
Arc Motors
Model Name
JTKA Series
Size
-
Weight
-
Product Details

Description

- Coreless Linear motor operating on a circular track
- High resolution, high precision and stability of control enabled



Specification

Model

JTKA3012A

JTKA3025A

JTKA4235

JTKA4270

JTKA6597

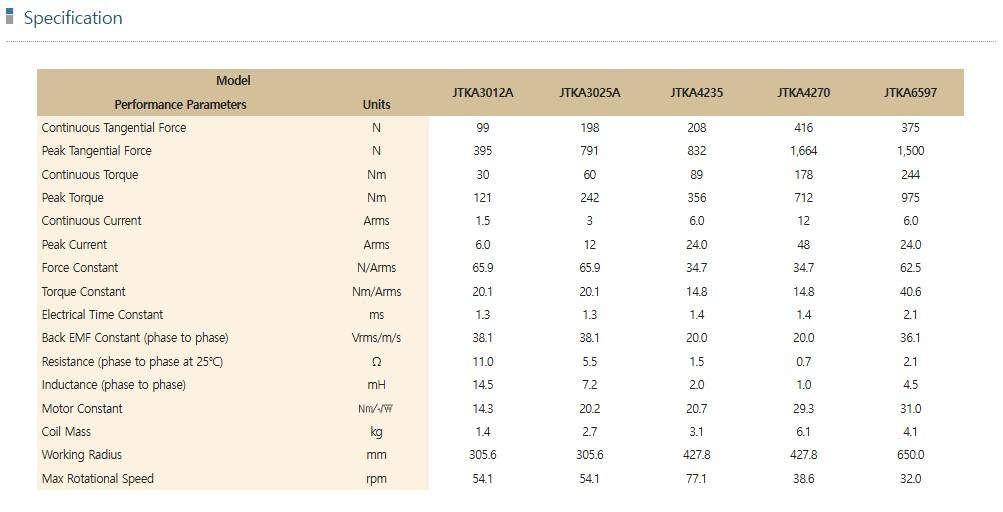

Performance Parameters

Units

Continuous Tangential Force

N

99

198

208

416

375

Peak Tangential Force

N

395

791

832

1,664

1,500

Continuous Torque

Nm

30

60

89

178

244

Peak Torque

Nm

121

242

356

712

975

Continuous Current

Arms

1.5

3

6.0

12

6.0

Peak Current

Arms

6.0

12

24.0

48

24.0

Force Constant

N/Arms

65.9

65.9

34.7

34.7

62.5

Torque Constant

Nm/Arms

20.1

20.1

14.8

14.8

40.6

Electrical Time Constant

ms

1.3

1.3

1.4

1.4

2.1

Back EMF Constant (phase to phase)

Vrms/m/s

38.1

38.1

20.0

20.0

36.1

Resistance (phase to phase at 25℃)

Ω

11.0

5.5

1.5

0.7

2.1

Inductance (phase to phase)

mH

14.5

7.2

2.0

1.0

4.5

Motor Constant

Justek Arc Motors JTKA Series

14.3

20.2

20.7

29.3

31.0

Coil Mass

kg

1.4

2.7

3.1

6.1

4.1

Working Radius

mm

305.6

305.6

427.8

427.8

650.0

Max Rotational Speed

rpm

54.1

54.1

77.1

38.6

32.0
