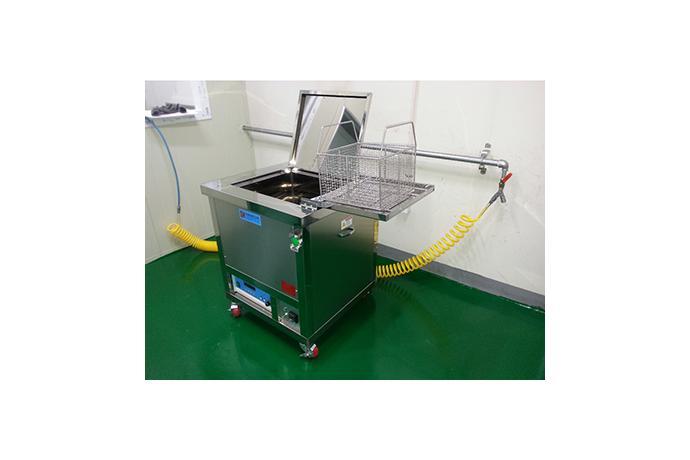

Single-Sump Ultrasonic Cleaner
Model Name
HKU-400W
Data
-
Manufacturer information
provider logo
K-SONIC

Ultrasonic washing machine manufacturer, Auto ultra washing machine, Ultra pure facility and more

Problem with product info?
Update request
Manufacturer
K-SONIC
Brand
-
SKU
60215
Product Name
Single-Sump Ultrasonic Cleaner
Model Name
HKU-400W, HKU-600W, HKU-1000W, HKU-1200W, HKU-1500W
Size
-
Weight
-
Product Details


SummaryIt is the most common and basic type of ultrasonic cleaners and can completely remove foreign substances attached to the material
to be cleaned by operating ultrasonic cleaning after depositing the material to be cleaned in the tank.
DivisionThis product is an integral single-bath type cleaner which is a type of vibration part, oscillation part,
and control part is mounted inside the ultrasonic cleaner.
It is cleaning equipment used in a semi-production line, laboratories, and companies where are specialized in diversified
small-quantity production.
Use* Cleaning of electrical and electronic parts
* cleaning of precision machinery parts
* cleaning of optical instruments and lenses
* cleaning of medical instruments
* cleaning before/after plating
* laboratory



Hankuk(Korea) Ultrasound Industry Single-Sump Ultrasonic Cleaner HKU-SeriesHankuk(Korea) Ultrasound Industry Single-Sump Ultrasonic Cleaner HKU-Series 1Hankuk(Korea) Ultrasound Industry Single-Sump Ultrasonic Cleaner HKU-Series 2Hankuk(Korea) Ultrasound Industry Single-Sump Ultrasonic Cleaner HKU-Series 3Hankuk(Korea) Ultrasound Industry Single-Sump Ultrasonic Cleaner HKU-Series 4

Model

Number

Tank

Dimension

(L x W x H)

Console

Dimension

(L x W x H)

Ultrasonic

Power

Ultrasonic

Frequency

Liquid

Capacity

Amount

of Heat

HKU-400W280*230*200340*280*300400 W28kHz , 40kHz12 L1,000W
HKU-600W300*270*250380*320*350600 W28kHz , 40kHz20 L1,000W
HKU-1000W400*350*250520*450*3501000 W28kHz , 40kHz35 L1,000W ~2,000W
HKU-1200W500*400*300660*540*5001200 W28kHz , 40kHz60 L1,000W ~2,000W
HKU-1500W500*500*350760*700*7001500 W28kHz , 40kHz87 L1,000W ~3,000W


SummaryIt is the most common and basic type of ultrasonic cleaners and can completely remove foreign substances attached to
the material to be cleaned by operating ultrasonic cleaning after depositing the material to be cleaned in the tank.
Division* It is free from space restraints because it is a type that oscillator and control part are separated from each other.
* It is easy to use with low output.
* In the case of detachable type, its production cost is lower than that in the integral type.
Features* It was designed to be easy to wash small quantity and light products.
* It is cleaning equipment used in a semi-production line, laboratories, and companies where are specialized in diversified
small-quantity production.
* You can just select or customize products according to various production processes, the type of material to be cleaned,
and purpose of use.
Use* Cleaning of electrical and electronic parts
* cleaning of precision machinery parts
* cleaning of optical instruments and lenses
* cleaning of medical instruments
* cleaning before
* after plating
* laboratory



Hankuk(Korea) Ultrasound Industry Single-Sump Ultrasonic Cleaner HKU-Series 5Hankuk(Korea) Ultrasound Industry Single-Sump Ultrasonic Cleaner HKU-Series 6

Hankuk(Korea) Ultrasound Industry Single-Sump Ultrasonic Cleaner HKU-Series 7

Model

Number

Tank

Dimension

(L x W x H)

Console

Dimension

(L x W x H)

Ultrasonic

Power

Ultrasonic

Frequency

Liquid

Capacity

Amount

of Heat

HKU-400W280*230*200340*280*300400 W28kHz , 40kHz12 L1,000W
HKU-600W300*270*250380*320*350600 W28kHz , 40kHz20 L1,000W
HKU-1000W400*350*250520*450*3501000 W28kHz , 40kHz35 L1,000W ~2,000W
HKU-1200W500*400*300660*540*5001200 W28kHz , 40kHz60 L1,000W ~2,000W
HKU-1500W500*500*350760*700*7001500 W28kHz , 40kHz87 L1,000W ~3,000W



SummaryCustom-made single-bath type ultrasonic cleaner
Explosion-proof ultrasonic cleaners are a type of custom-made single-bath type ultrasonic cleaners.
In addition, it has been manufactured variously according to its usage, working environment, and the request of customers.
DivisionIt is ultrasonic cleaners that can be used in an explosion-proof area.
The equipment is classified as a single-bath type, but its configuration is very complex, requiring a high level of skill.
FeaturesIt is aimed to prevent the risk of explosion by using ultrasonic cleaners in an explosion-proof area by using a structure in
which a storage gas is injected into the vibrator vessel to maintain a constant pressure,
so that the combustible gas does not flow into the inside.
UseIt has a special purpose of being used in the place where there is danger of explosion due to gas or vaporization

Hankuk(Korea) Ultrasound Industry Single-Sump Ultrasonic Cleaner HKU-Series 8

Hankuk(Korea) Ultrasound Industry Single-Sump Ultrasonic Cleaner HKU-Series 9Hankuk(Korea) Ultrasound Industry Single-Sump Ultrasonic Cleaner HKU-Series 10Hankuk(Korea) Ultrasound Industry Single-Sump Ultrasonic Cleaner HKU-Series 11

Hankuk(Korea) Ultrasound Industry Single-Sump Ultrasonic Cleaner HKU-Series 12

K-SONIC
Ultrasonic washing machine manufacturer, Auto ultra washing machine, Ultra pure facility and more
Hankuk(Korea) Ultrasound Industry is the No.1 company in the field of ultrasonic cleaners, which has been researching and developing, producing, and selling the ultrasonic cleaning equipment, its auxiliary equipment, and etc. which require zero-defect cleaning throughout the semiconductor, smart phone, related precision parts, mechanical precision parts, optical lenses, automobile industry, aerospace industry, and etc. The ultrasonic cleaners manufactured by Hankuk(Korea) Ultrasonic Industry have a reputation for having the most excellent mechanical completeness in the same line of business. Not only does it have a low failure rate, it also has a very high user satisfaction because of thorough quality control until it is completed as well as performance. With over 30 years of continuous efforts from the simplest single-bath type ultrasonic cleaners to fully automatic cleaner, we have been able to supply our products to five leading domestic companies including Samsung and Hyundai as increasing technical skills and experience, and have been recognized as a company exporting to US and Japan which are advanced countries of ultrasound. In addition, we are continuously trying to make a more secure and perfect ultrasonic cleaners, based on the technology that passed KC, the abbreviation for Korea Certificate, and CE, that for Comunaute Europeenne, which is notorious for obtaining it. We will do our best to provide our customers with the best cleaning solutions by discussing any problems with them, which they are having difficulty in cleaning something in the industrial field.
