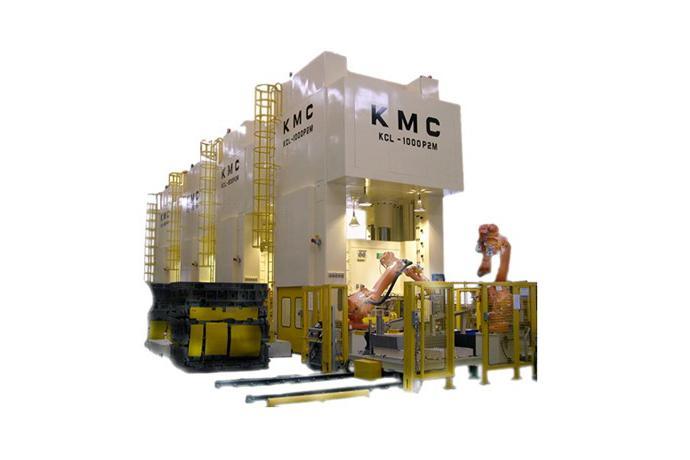

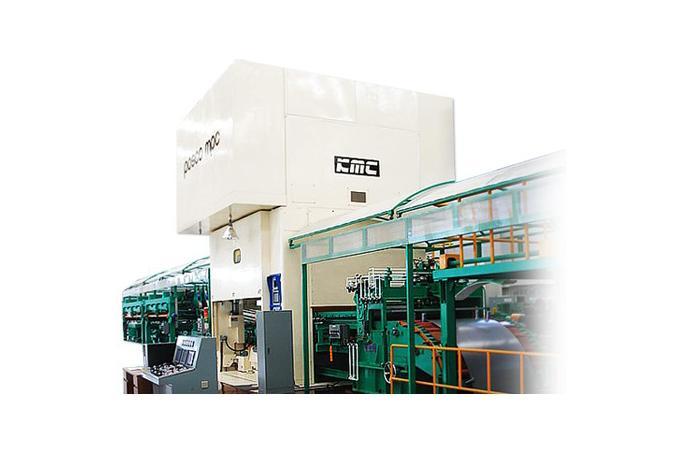

KSD Series / H-Type Double Crank Press
Capacity(Ton) 300 ~ 800
H TYPE FRAME (Straight Side Frame) has strong frame structure and maintains fixing ratio without deformation under concentrated load.
- DRY TYPE CLUTCH BRAKE
- MANUAL GREASE PUMP DEVICE
- HYDRAULIC OVERLOAD PROTECTOR DEVICE
- SLIDE ADJUSTMENT DEVICE
- CIRCULATION TYPE AUTOMATIC OIL LUBRICATING SYSTEM
- 2 POINT 4 PHASES STRUCTURE
- SUITABILE FOR AUTOMATIZATION AND RATIONALIZATION
- STRUCTURE OF RIGID FRAME CAN GUARANTEE DYNAMIC ACCURACY
- PHOTOELECTRIC SAFETY DEVICE
- AIR EJECTOR
- FREE SET COUNTER
Standard Specifications
Speciflcarion | Unit | KSD-300 | KSD-400 | KSD-500 | KSD-600 | KSD-800 |
Capacity | ton | 300 | 400 | 500 | 600 | 800 |
Limit of Capacity | mm | 10 | 10 | 10 | 10 | 10 |
Stroke | mm | 300 | 400 | 400 | 450 | 450 |
Number of Stroke | spm | 24 | 24 | 24 | 24 | 24 |
Die Height | mm | 650 | 750 | 800 | 850 | 850 |
Adjustment of slide | mm | 200 | 200 | 250 | 250 | 250 |
Area of slide | mm | 2500x1600 | 2500x1600 | 2500x1600 | 2800x1600 | 3000x1600 |
Area of Bolster | mm | 2500x1600 | 2500x1600 | 2500x1600 | 2800x1600 | 3000x1600 |
Working height | mm | 750 | 750 | 750 | 750 | 750 |
Main Motor | kwxp | 37x4 | 45x4 | 55x4 | 75x4 | 90x4 |
Product Information
Features
- Equipped With Wet Type clutch and brake system
- Good Durability for long time continuous working
- Driving mechanism offer dynamic accuracy while working
- Better workability for large size product
- Good workability for sheet metal working such as blanking,piercing,stamping, bending
Selection
1. V/S MOTOR
2. DIE CUSHION
3. ANTI-VIBRATION UNIT
4. QUICK DIE CHANGE
5. ELECTRONIC GONIOMETER
6. KNOCK OUT DEVICE
7. AUTO TRANSFER DEVICE
8. PLC SYSTEM( Programable Logic Controller )
