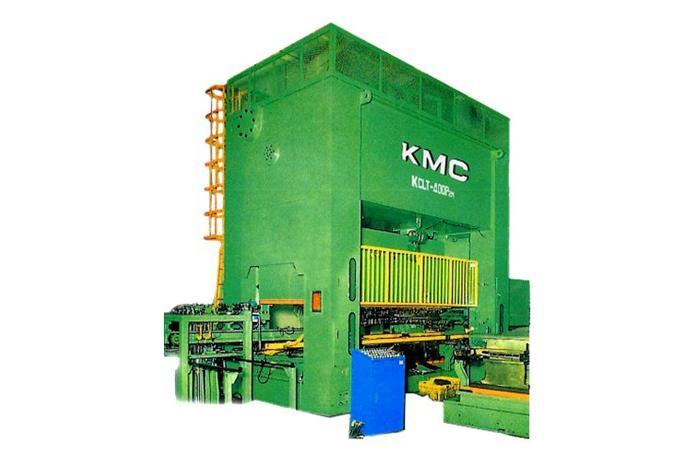

KCLT Series / H-type Transfer Press
KCLT press is a transfer press for both 2D and 3D products and created a characteristic in the press machine.
It is a powerful, transfer only press with fry-structure which is designed to make the most of its ability to maintain eccentric load and dynamical degree during the processing. With various built-in safety devices and nearly perfect lubrication system, durability of machine is guaranteed under 24 hour continuous run under heavy load.
In particular, transfer units mounted on this press have sub control method that is simply controlled and exchanged by control panel buttons. It is perfect model for middle and small sized manufacturing companies which manufacture various types of products.
Standard Specifications
Standard Specifications KCLT-P2
| Speciflcarion | Unit | KCLT-300P2 | KCLT-400P2 | KCLT-500P2 | KCLT-600P2 | KCLT-800P2 | KCLT-1000P2 | KCLT-1200P2 | KCLT-1500P2 |
| Capacity | ton | 300 | 400 | 500 | 600 | 800 | 1000 | 1200 | 1500 |
| Limit of Capacity | mm | 13 | 13 | 13 | 13 | 13 | 13 | 13 | 13 |
| Stroke | mm | 300 | 400 | 500 | 500 | 600 | 600 | 600 | 600 |
| Number of Stroke | spm | 24 | 24 | 24 | 24 | 20 | 20 | 20 | 18 |
| Die Height | mm | 700 | 800 | 900 | 1000 | 1200 | 1200 | 1300 | 1300 |
| Adjustment of slide | mm | 400 | 400 | 400 | 400 | 400 | 500 | 500 | 500 |
| Area of slide | mm | 2500x1000 | 3000x1200 | 3000x1200 | 3600x1200 | 3600x1400 | 4000x1700 | 4200x1700 | 4500x1700 |
| Area of Bolster | mm | 2500x1000 | 3000x1200 | 3000x1200 | 3600x1200 | 3600x1400 | 4000x1700 | 4200x1700 | 4500x1700 |
| Working height | mm | 650 | 650 | 650 | 650 | 650 | 650 | 600 | 750 |
| Main Motor | kwxp | 75x4 | 90x4 | 110x4 | 110x4 | 135x4 | 135x4 | 150x4 | 185x4 |
Standard Specifications KCLT-P4
