product Image

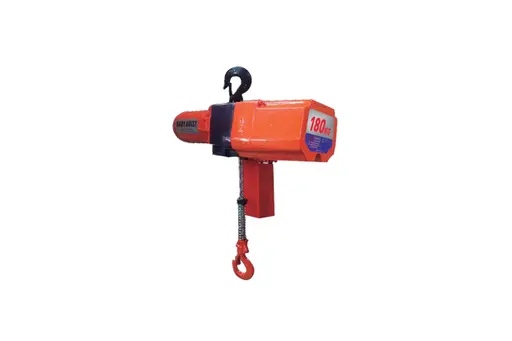

Baby Hoist
Model Name
KEH1S-B180
Series
Electric Hoist
Data
-
Manufacturer information
provider logo
KOREA HOIST

Air hoist, Air balance, Light weight rail, Explosion, Crane, Air motor, Winch, Conveying and unloading machine

Problem with product info?
Update request
Manufacturer
KOREA HOIST
Brand
-
SKU
136490
Product Name
Baby Hoist
Model Name
KEH1S-B180, KEH1S-B350
Size
-
Weight
-
Product Details

ㆍAdopting 180V~240V single phase type

ㆍInstalled with speed dial that user can select

ㆍMaximizing the work efficiency through high speed

ㆍTriple circuit protection device (Relay & mechanical & P/B)

ㆍDual hoisting limit (electric & mechanical)

ㆍDual break (mechanical & dynamic)

ㆍDual emergency stop function (main power & operation power interception)

ㆍOverload prevention system through mechanical torque limit

ㆍLow power consumption and minimum maintenance cost (1.5~1.8A)





Specification

Model No. Unit KEH1S-B180 KEH1S-B350
RATED LOAD (Kg) 180 350
MOTOR POWER (W) 300 300
Standard Lift (m) 3 3
Push button code L(m) 2.5 2.5
Load Chain (mm) 4 (1 fall) 4 (2 falls)
Weight (Kg) 13 15
Head Room A(mm) 400 490
Height B(mm) 300 300
Speed m/min at 60 Hz,240V No Load 90Kg 180Kg No Load 175Kg 350Kg
UP Low CHANGEABLE 3~6 3~6 2~5 1.5~3 1.5~3.0 1~2.5
High   10 9 8 5.0 4.5 4.0
DOWN Low CHANGEABLE 3~6 3~6 2~5 1.5~3 1.5~3 1.0~1.5
High   10 9 6 5.0 4.5 4.5



Note

1. The aforesaid specification is subject to change without notice.

2. The aforesaid speed is based on 240V 60Hz and changes depending on input power.

3. Load limiter can be modified before the release at the request of customer.
