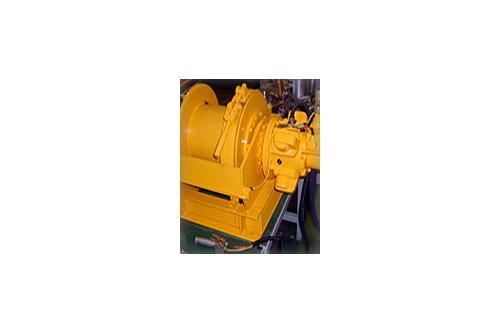

Section | Air Winch |
Technical | - Usable in area prone to blast and dust generation (No Spark) - A design suitable specifically for high temperature and humid region |
Feature | - Easy adjustment of speed and fine location - Easy operation (lever-operated) - Low risk with safe design - Less damage from overheating in the case that the weight limit is exceeded,and high safety - Cap. 1,000~10,000kg |
Model | Capacity(Kg) | Air Motor(Kw) | Air Consumption(m³) | Wire Rope Dia(mm) | Wire Rope Speed(m/min) | Net Weight(Kg) | Remark |
KAW-V025-07 | 250 | 1.7 | 2,2 | 6.3 | 25 | 120 | - |
KAW-V050-07 | 500 | 3.5 | 3,5 | 8 | 30 | 250 | - |
KAW-V100-25 | 1,000 | 6.1 | 7,8 | 11.2 | 25 | 350 | - |
KAW-P200-20 | 2,000 | 10.6 | 11,9 | 16 | 20 | 450 | - |
KAW-P300-20 | 3,000 | 16.0 | 19,7 | 20 | 20 | 500 | - |
KAW-P500-20 | 5,000 | 23.0 | 25,3 | 25 | 20 | 650 | - |
