Description
Product Explanation

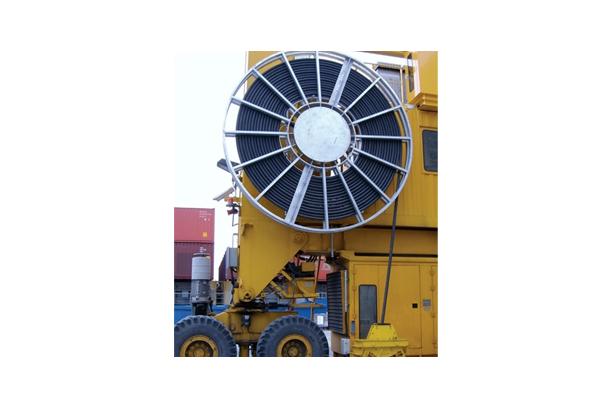

- This reel employs secondary voltage controlling type and is consist of Torque Motor Reducer, and Brake.
- Proper structure for Hoisting Crane
- Driven by Torque motor
- Customizable to integrated or separated
- High Voltage Cable and Power Cable are applicable
- Fan motor is applied with Motor Cooling motor
- High Voltage (AC 3.3Kv, 6.6Kv, 11Kv)
The drawings of Torque Motor
| NO. | SLIP RING CURRENT | CABLE specification(ROUND TYPE) | ØA | C | WINDING LENGTH (ØB) | ||
|---|---|---|---|---|---|---|---|
| 100m | 150m | 200m | |||||
| 1 | 200A | 60sq × 4c | 1200 | 60 | 3000 | 3600 | 4000 |
| 2 | 300A | 100sq × 4c | 1600 | 70 | 3500 | 4100 | 4600 |
| 3 | 400A | 150sq × 4c | 1600 | 85 | 3800 | 4400 | 5000 |
High Voltage Torque Motor Type (AC 3.3KV, 6.6KV, 11KV)
Low Voltage Torque Motor Type
