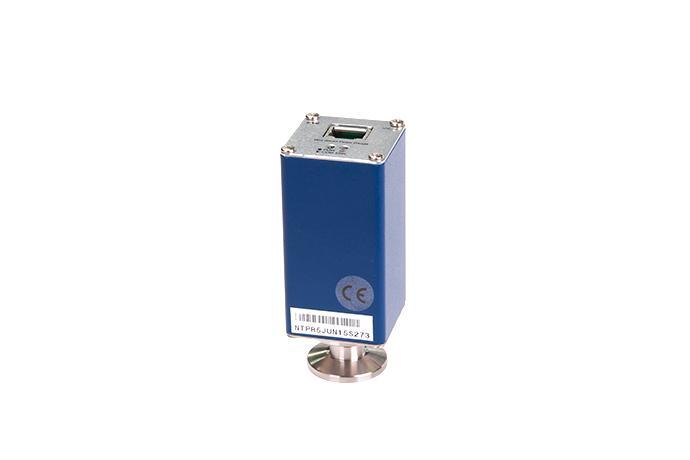

KPM200 Mini Gauge
KPM200 Mini Gauge는 Piezo sensor와 Pirani sensor를 결합하여 대기압에서 정확한 값을 나타내는 가장 컴팩트한 진공 게이지 입니다.
◾Measurement Range:1500 ~ 1.0E-3Torr
◾Analog Output : 1V/decade, 2 ~ 8Vdc
◾Input Power : 11.5 Vdc ~ 26.5 Vdc
◾Cable : RJ-45 Modular jack
◾Cable length : 3m(Standard), 50m(Maximum)
◾Fitting : 1/8 NPT, NW16, 1.33" CF, 1/4" VCR
◾Position : Any
◾Interface : RS485 Modbus
