Product Name
Interrupter Switches
Model Name
-
Size
-
Weight
-
Product Details

Polymer Rubber / Porcelain Type Support Insulators (HORIZONTAL TYPE)

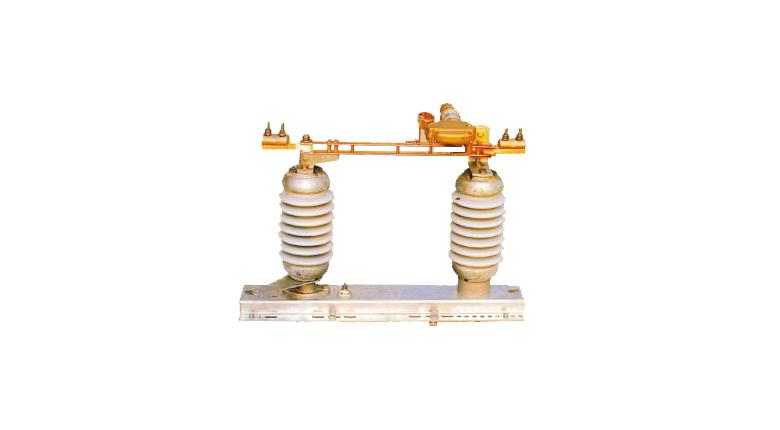

Kyungdong Electric Interrupter Switches

Kyung Dong Interrupter Switchs are made to operate at voltage up 36KV for the applications of Distribution Feeders and customer's substations.



The main characteristics are :

High operation reliability

Simple maintenance & inspection

High dynamic & thermal strength

No external arc

Simple driving mechanism



The above mentioned characteristics are qualified basing upon a combination of public laboratory test and over the year's operational experience.



No Rating(kV)
15 25 35
A 775 850 935
B 460 540 605
C 515 610 710
D 395 490 590



■ Specification

Rated voltage(kV) 15 25 35
Rated current Continuous (A) 600/630
Momentary (kA) 40
1sec (kA) 25
Rated Frequency(Hz) 50/60
Basic Impules Withstand Voltage(kV) 110 150 200
Power-frequency Withstand Voltage(kV) 50 70 95
Service Condition Out door
Support Insulator(Porcelain) TR 205 TR 208 TR 210
Operation Manual Operation
Applied Standards IEC 60265-1
