for Electric Defrost Only
Model Name
FV-Series
Series
Freon Unit Cooler
Data
-
Manufacturer information
provider logo
KyungDong R&H

Unit cooler, Air cooling condenser, Cooling coil, Condenser and more

Problem with product info?
Update request
Manufacturer
KyungDong R&H
Brand
-
SKU
54524
Product Name
for Electric Defrost Only
Model Name
FV-Series
Size
-
Weight
-
Product Details

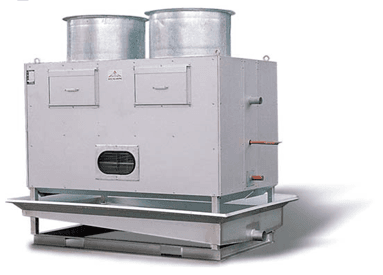

- Optimized defrost with electric defrost of floor mounted unit cooler.

- Easy installation and maintenance by exposed coil section type.

- Minimum of A/S
   1) Long life of the drain heater by double drain pan,(patented by KYUNG DONG)
   2) No clean-up of the drain pan due to closed-structure of the drain pan.

- Increasing of the refrigeration efficiency and constant room temperature by wide air suction hole.


KyungDong R&H for Electric Defrost Only FV-Series

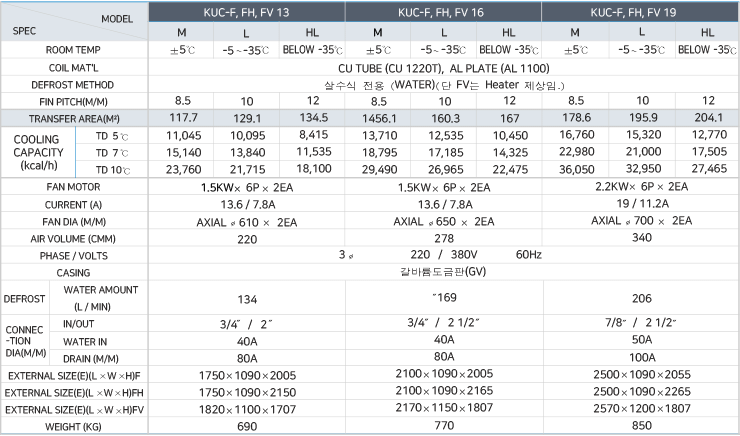

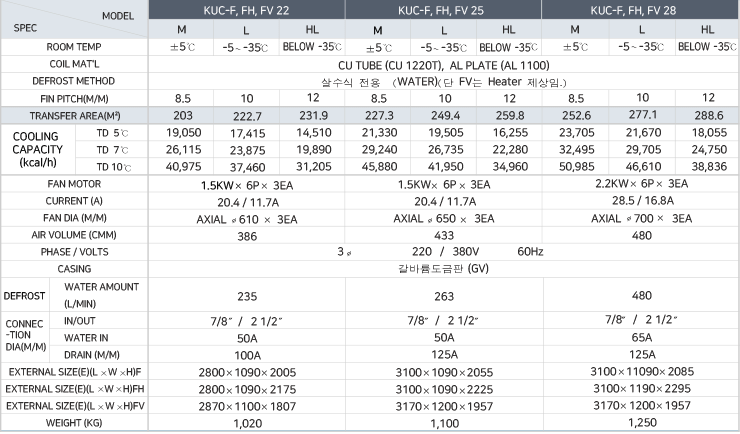

UNIT COOLER D,P,F-TYPE

SPEC  \  MODEL
ROOM TEMP
COIL MAT'L
DEFROST METHOD
FIN PITCH(M/M)
TRANSFER AREA(M2)
cooling capacity
(kcal/h)
TD 5℃
TD 7℃
TD 10℃
FAN MOTOR
CURRENT(A)
FAN DIA(M/M)
AIR VOLUME(CMM)
PHASE/VOLTS
CASING
KyungDong R&H for Electric Defrost Only FV-Series 1 WATER OUT(L/MIN)

WATER IN(M/M)

HOT GAS
CONNECTION
DIA(M/M)
IN/OUT
DRAIN

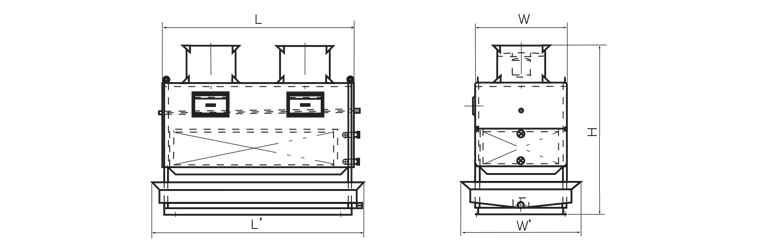

EXTERNAL SIZE(E)(H*W*L)F
WEIGHT(KG)
KUC-D,P,F26 KUC-D,P,F28 KUC-D,P,F31 KUC-D,P,F34
L HL L HL L HL L HL
-25~-35℃ BELOW-
35℃
-25~-35℃ BELOW-
35℃
-25~-35℃ BELOW-
35℃
-25~-35℃ BELOW-
35℃
CU TUBE(CU 1220T),AL PLATE(AL 1100)
살수식전용 WATER SPRAY DEFROST ONLY
10 12 10 12 10 12 10 12
257.3 268 227.1 288.6 306.8 319.5 336.5 350.5
20,120 16,770 21,670 18,055 23,995 19,990 26,315 21,930
27,585 22,985 29,705 24,750 32,890 27,400 36,075 30,060
43,280 36,065 46,610 38,835 51,605 42,995 56,600 47,165
1.5KW*3, 6P 2.2KW*2, 6P 2.2KW*2, 6P 2.2KW*2, 6P
20.4 / 11.7 A 28.5 / 16.8 A 28.5 / 16.8 A 27.2 / 15.6 A
AXIAL φ 650 * 3 AXIAL φ 650 * 3 AXIAL φ 650 * 3

AXIAL φ 650 * 3

446 480 532 583
3φ     220V / 380V     60Hz
갈바륨 도금강판(GV)
291 314 347 381
65A 65A 65A 65A
1" 1" 1" 1"
7/8" / 2 1/2" 7/8" / 2 1/2" 7/8" / 2 1/2" 7/8" / 2 1/2"
125A 125A 125A 125A
1550*820*2920 1550*820*3120 1600*820*3420 1600*820*3720
840 880 930 1,020
