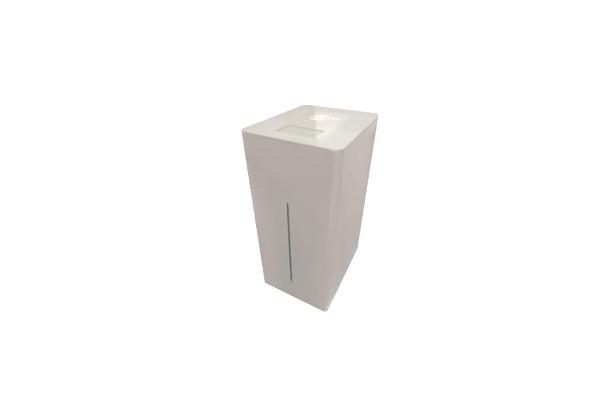

ESS (Energy Storage System) consists of MPPT-based DC-DC converter., bidirectional DC-DC converter, bidirectional inverter and batter.
DC power generated by solar module and AC input power supplied form grid are consumed in the load as well as stored in the battery/
By storing the surplus energy, the ESS can supply the energy when it is needed. Therefore, the ESS can play a role on UPS
| Model | EH5000DC1B-10k | EH3000DC1B-4K | |
|---|---|---|---|
| System Overview | Rated Voltage | 220/230 VAC(Single-phase) | <- |
| Energy Capacity | 10 kWh | 4 kWh | |
| System Specification | Efficlency | More than 90% | <- |
| THD | Less than 5% | <- | |
| Power Factor | More than 0.98 | <- | |
| Solar Input | Input Voltage | 150~450 VDC | <- |
| Normal Voltage | 310 VDC | 346 VDC | |
| Initial Feeding Voltage | 150 VDC | <- | |
| Maximum Input Current | 17 A | 8.5 A | |
| AC Input | Input Voltage | 220 / 230 ± 10% | <- |
| Output | Rated Power | 5 kVA | 3 kVA |
| Rated Voltage | 220 / 230 VAC | <- | |
| Frequency | 50/60 ± 0.1Hz | <- | |
| Maximum Output Current | 22.8 A | 14 A | |
| Battery Data | Type | Lithium-Ion | <- |
| Voltage | 200 ~ 240 VDC | ||
| Maximum Charging Current | 20A | 10A | |
| Enclosure | Operating Temperature | -10 ~ 45ºC | <- |
| Relative Humidity | Less than 90% | <- | |
| Dimensions | 450 x 1000 x 550 mm | <- | |
| Weight (Maximum) | 180kg | 120kg | |
