1. Description

■ This RGB matrix switcher allows maximum 4 RGB input signals to be switched to
    2 compatible devices.Input/output Connector d-sub connector.

■ Front switch enables to control input/output and remote control function is
    available through RS-232C Port.

■ Memory function by PGM Key enables to save and execute the last input/output
    status. Memory Back-up function helps to maintain the last status while it is
    turned off.

■ LED Switch enables to check status of the selection, LED Switch enables to
    check status of the Remote Control selection.

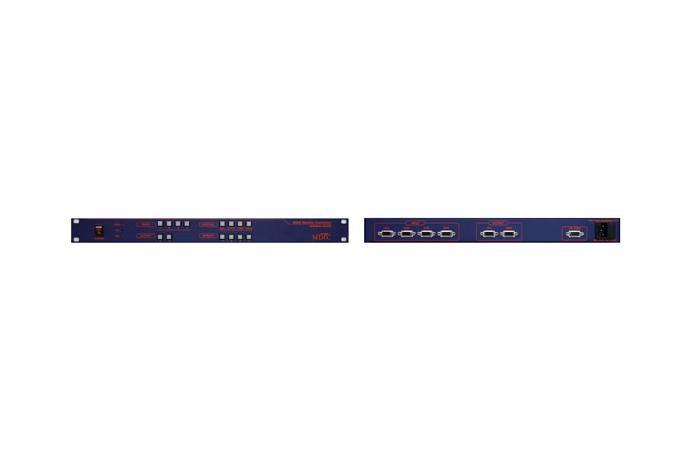

2. Panel Drawing

3. Specification

■ Video Part
  - Input/Output number : 4 x 2
  - Input/Output type : RGBHV
  - Input/Output connector : D-sub 15pin connector
  - Input/Output level : analog RGB : 1.2Vp-p Max, H-Sync, V-Sync : TTL level
  - Input/Output impedance : 75Ohm ± 1%
  - Bandwidth : 600 MHz (-3 dB), fully loaded
  - Crosstalk : -78 dB @ 5 MHz, -70 dB @ 10 MHz
  - S/N : below 70dB

■ Remote Control Part
  - Serial control : 1 RS-232, D-sub 9pin connector

■ Case & Power Part
  - Power source : AC 85 ~ 240V 50 ~ 60Hz
  - Temperature : 0℃ ~ 40℃
  - Power consumption : below 20Watt
  - Type : 19” Rack Type
  - Dimensions : 483(W) * 44.5(H) * 300(D) mm
