1. Description

○ It allows 16 RGB input signals with R.G.B.HD.VD. to be switched to one
    compatible display device.

○ Controlled via the front panel switches, built-in correspondent ports enable to
    control operating software and interface. A rear BNC connector makes operation
    easy.

○ 16 selector switches with lamps which allow to control individually.

○ LED helps to view and confirm status of the selected switch and the
    communicated remote control.

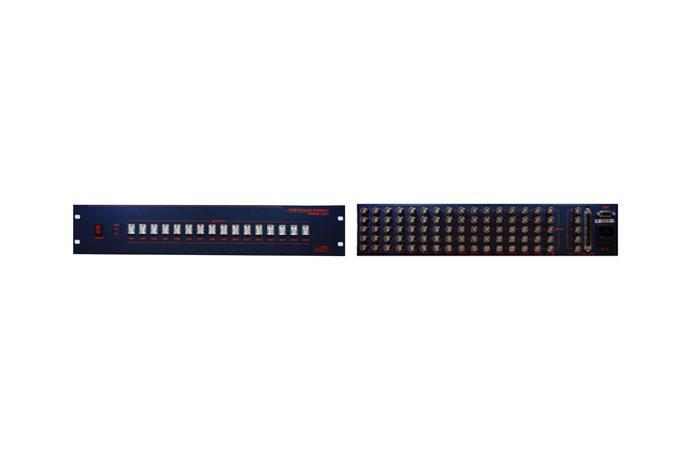

2. Panel Drawing

3. Specification

○ Video Part
  - Input/Output number : 16 x 1
  - Input/Output type : RGBHV
  - Input/Output connector : 5 BNC
  - Input/Output level : analog RGB : 1.2Vp-p Max, H-Sync, V-Sync : TTL level
  - Input/Output impedance : 75Ohm ± 1%

○ Remote Control Part
  - Serial control : 1 RS-232, D-sub 9pin connector
  - Lamp out : +12V
  - Remote input : dry Contact

○ Case & Power Part
  - Power source : AC 85 ~ 240V, 50 ~ 60Hz
  - Temperature : 0℃ ~ 40℃
  - Power consumption : below 30Watt
  - Type : 19" Rack Type
  - Dimensions : 483(W) * 89(H) * 300(D) mm
