마그네틱 필터링 시스템
Model Name
M-100
Series
-
Data
-
Manufacturer information
provider logo
NEOS

Oil skimmer, Oil separator, Magnetic separator, Paper filter, Cutting fluid cleaning system, Electronic valve, NEOS

Problem with product info?
Update request
Manufacturer
NEOS
Brand
-
SKU
134748
Product Name
마그네틱 필터링 시스템
Model Name
M-100, M-150, M-250, M-350, M-500
Size
-
Weight
-
Product Details

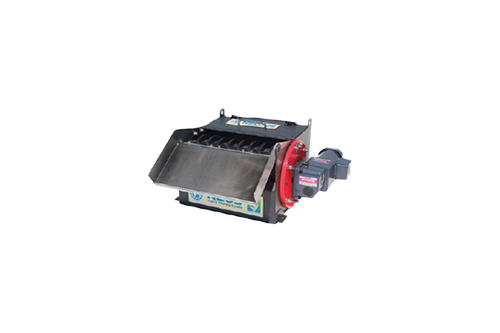

Magnetic Separator (Disc Wheel Type)



가동방식

1. 유체가 유입

2. 마그네틱 휠에서 자성 슬러지를 포집

3. 자성물질이 분리된 유체는 하부 탱크에서 Over flow clean tank 이동



마그네틱 세파레이터 규격 (단위 : cm)

모델 유량 가로 세로 높이
M-100 100 ℓ/min 405 540 270
M-150 150 ℓ/min 520 540 270
M-250 250 ℓ/min 690 540 270
M-350 350 ℓ/min 860 540 270
M-500 500 ℓ/min 1,210 540 270



마그네틱 세파레이터 설치 사례 (250ℓ/min, 포집능력은 세계최대)
