Description
Description

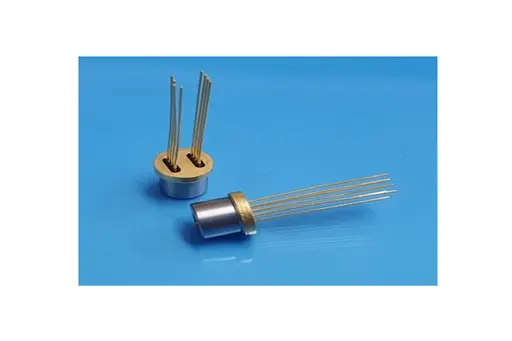

Distributed feedback laser diode(DFB LD) operating at 1286nm is packaged in cooled TOcan for use in ONU of 25GS-PON.
The cooled TO-can has a micro thermo-electronic cooler (TEC) to control the operating temperature of DFB LD.
Features
- Low threshold current and low operating current
- Packaged in a hermetic sealed TO60-can with TEC and thermistor
- Wide operating temperature range from -40oC to 85oC
- Modulation capability up to 24.883Gbps
- Complies with Telcordia GR-468
Application
ONU for 25GS-PON
Specification
PIN MAP (bottom View)
