10Gbps DFB LD TO
Model Name
-
Size
-
Weight
-
Product Details

Description

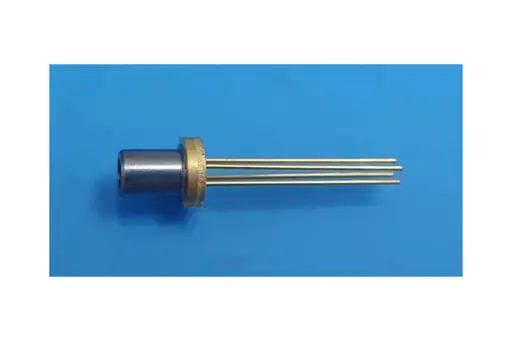

Distributed feedback laser diode(DFB LD) is packaged in TO can for use in uncooled CWDM applications up to 10.7Gbps. CWDM wavelengths are available from 1270nm to 1430nm.



Features

  • Low threshold current and low operating current
  • Packaged in a hermetic sealed TO56 can
  • Wide operating temperature range from 40 o C to 95 o C
  • Modulation capability up to 10.7Gbps



Application

  • SONET/SDH OC-192/STM 64
  • 10Gbps Ethernet
  • 10Gbps Fiber Channel



Specification



PIN MAP (bottom View)
