Specification
Cable specifications | Allowable Current | Rewind | Installation | |||
---|---|---|---|---|---|---|
Square | Cable Material | Core | Length(MR) | |||
2.5 ~ 4.0 | VCTF | 3 ~ 4 | 10MR~50MR | 30A | Spring | Floor, Wall |
30ft~165ft |
Design & Structure
Painting : Powder Coat.

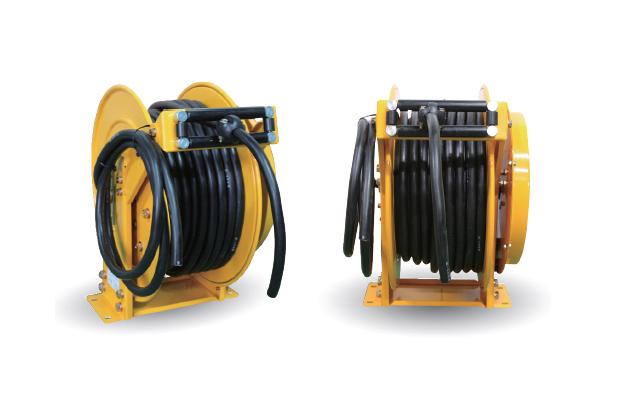

CT1 SERIES reels are furnished standard with VCT Cable
Other specifications are available.
APPLICATION
MODEL NO. | CABLE CAPACITY | REEL DIMENSIONS | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Wire Size |
Number of Conduct |
LEN GTH | A | B | C | D | E | F | G | H | X | Y | |
sq | core | meter feet |
mm inch |
mm inch |
mm inch |
mm inch |
mm inch |
mm inch |
mm inch |
mm inch |
mm inch |
mm inch |
|
CT1/13-1 | 1.5 | 3 | 10 30 |
260 10.2 |
120 4.7 |
150 5.9 |
110 4.3 |
250 9.8 |
240 9.4 |
280 11 |
155 6.1 |
230 9.1 |
70 2.8 |
CT1/13-2 | 1.5 | 3 | 15 50 |
260 10.2 |
120 4.7 |
150 5.9 |
110 4.3 |
300 11.8 |
240 9.4 |
330 13 |
180 7.1 |
230 9.1 |
70 2.8 |
CT1/13-3 | 1.5 | 3 | 20 70 |
260 10.2 |
120 4.7 |
150 5.9 |
110 4.3 |
300 11.8 |
240 9.4 |
330 13 |
180 7.1 |
230 9.1 |
70 2.8 |
CT1/13-4 | 1.5 | 3 | 25 85 |
260 10.2 |
120 4.7 |
250 9.8 |
110 4.3 |
350 13.8 |
240 9.4 |
380 15 |
205 8.1 |
230 9.1 |
70 2.8 |
CT1/13-5 | 1.5 | 3 | 30 100 |
260 10.2 |
120 4.7 |
280 11 |
110 4.3 |
380 15 |
240 9.4 |
410 16.1 |
220 8.7 |
230 9.1 |
70 2.8 |
CT1/13-6 | 1.5 | 3 | 35 115 |
260 10.2 |
120 4.7 |
280 11 |
110 4.3 |
380 15 |
240 9.4 |
410 16.1 |
220 8.7 |
230 9.1 |
70 2.8 |
CT1/13-7 | 1.5 | 3 | 40 130 |
260 10.2 |
120 4.7 |
300 11.8 |
150 5.9 |
450 17.7 |
240 9.4 |
490 19.3 |
265 10.4 |
230 9.1 |
110 4.3 |
CT1/13-8 | 1.5 | 3 | 45 150 |
260 10.2 |
120 4.7 |
300 11.8 |
150 5.9 |
450 17.7 |
240 9.4 |
490 19.3 |
265 10.4 |
230 9.1 |
110 4.3 |
CT1/13-9 | 1.5 | 3 | 50 165 |
260 10.2 |
120 4.7 |
300 11.8 |
150 5.9 |
450 17.7 |
240 9.4 |
490 19.3 |
265 10.4 |
230 9.1 |
110 4.3 |
CT1/23-1 | 2.5 | 3 | 10 30 |
260 10.2 |
120 4.7 |
150 5.9 |
110 4.3 |
250 9.8 |
240 9.4 |
280 11 |
155 6.1 |
230 9.1 |
70 2.8 |
CT1/23-2 | 2.5 | 3 | 15 50 |
260 10.2 |
120 4.7 |
150 5.9 |
110 4.3 |
300 11.8 |
240 9.4 |
330 13 |
180 7.1 |
230 9.1 |
70 2.8 |
CT1/23-3 | 2.5 | 3 | 20 70 |
260 10.2 |
120 4.7 |
150 5.9 |
110 4.3 |
300 11.8 |
240 9.4 |
330 13 |
180 7.1 |
230 9.1 |
70 2.8 |
CT1/23-4 | 2.5 | 3 | 25 85 |
260 10.2 |
120 4.7 |
250 9.8 |
110 4.3 |
350 13.8 |
240 9.4 |
380 15 |
205 8.1 |
230 9.1 |
70 2.8 |
CT1/23-5 | 2.5 | 3 | 30 100 |
260 10.2 |
120 4.7 |
280 11 |
110 4.3 |
380 15 |
240 9.4 |
410 16.1 |
220 8.7 |
230 9.1 |
70 2.8 |
CT1/23-6 | 2.5 | 3 | 35 115 |
260 10.2 |
120 4.7 |
280 11 |
110 4.3 |
380 15 |
240 9.4 |
410 16.1 |
220 8.7 |
230 9.1 |
70 2.8 |
CT1/23-7 | 2.5 | 3 | 40 130 |
260 10.2 |
120 4.7 |
300 11.8 |
150 5.9 |
450 17.7 |
240 9.4 |
490 19.3 |
265 10.4 |
230 9.1 |
110 4.3 |
CT1/23-8 | 2.5 | 3 | 45 150 |
260 10.2 |
120 4.7 |
300 11.8 |
150 5.9 |
450 17.7 |
240 9.4 |
490 19.3 |
265 10.4 |
230 9.1 |
110 4.3 |
CT1/23-9 | 2.5 | 3 | 50 165 |
260 10.2 |
120 4.7 |
300 11.8 |
150 5.9 |
450 17.7 |
240 9.4 |
490 19.3 |
265 10.4 |
230 9.1 |
110 4.3 |
CT1/14-1 | 1.5 | 4 | 10 30 |
260 10.2 |
120 4.7 |
150 5.9 |
110 4.3 |
300 11.8 |
240 9.4 |
330 13 |
180 7.1 |
230 9.1 |
70 2.8 |
CT1/14-2 | 1.5 | 4 | 15 50 |
260 10.2 |
120 4.7 |
150 5.9 |
110 4.3 |
300 11.8 |
240 9.4 |
330 13 |
180 7.1 |
230 9.1 |
70 2.8 |
CT1/14-3 | 1.5 | 4 | 20 70 |
260 10.2 |
120 4.7 |
150 5.9 |
110 4.3 |
350 13.8 |
240 9.4 |
380 15 |
205 8.1 |
230 9.1 |
70 2.8 |
CT1/14-4 | 1.5 | 4 | 25 85 |
260 10.2 |
120 4.7 |
250 9.8 |
110 4.3 |
380 15 |
240 9.4 |
410 16.1 |
220 8.7 |
230 9.1 |
70 2.8 |
CT1/14-5 | 1.5 | 4 | 30 100 |
260 10.2 |
120 4.7 |
280 11 |
110 4.3 |
380 15 |
240 9.4 |
410 16.1 |
220 8.7 |
230 9.1 |
70 2.8 |
CT1/14-6 | 1.5 | 4 | 35 115 |
260 10.2 |
120 4.7 |
280 11 |
110 4.3 |
380 15 |
240 9.4 |
410 16.1 |
220 8.7 |
230 9.1 |
70 2.8 |
CT1/14-7 | 1.5 | 4 | 40 130 |
260 10.2 |
120 4.7 |
300 11.8 |
150 5.9 |
450 17.7 |
240 9.4 |
490 19.3 |
265 10.4 |
230 9.1 |
110 4.3 |
CT1/14-8 | 1.5 | 4 | 45 150 |
260 10.2 |
120 4.7 |
300 11.8 |
150 5.9 |
450 17.7 |
240 9.4 |
490 19.3 |
265 10.4 |
230 9.1 |
110 4.3 |
CT1/14-9 | 1.5 | 4 | 50 165 |
260 10.2 |
120 4.7 |
300 11.8 |
150 5.9 |
450 17.7 |
240 9.4 |
490 19.3 |
265 10.4 |
230 9.1 |
110 4.3 |
CT1/24-1 | 2.5 | 4 | 10 30 |
260 10.2 |
120 4.7 |
150 5.9 |
110 4.3 |
300 11.8 |
240 9.4 |
330 13 |
180 7.1 |
230 9.1 |
70 2.8 |
CT1/24-2 | 2.5 | 4 | 15 50 |
260 10.2 |
120 4.7 |
150 5.9 |
110 4.3 |
300 11.8 |
240 9.4 |
330 13 |
180 7.1 |
230 9.1 |
70 2.8 |
CT1/24-3 | 2.5 | 4 | 20 70 |
260 10.2 |
120 4.7 |
150 5.9 |
110 4.3 |
350 13.8 |
240 9.4 |
380 15 |
205 8.1 |
230 9.1 |
70 2.8 |
CT1/24-4 | 2.5 | 4 | 25 85 |
260 10.2 |
120 4.7 |
250 9.8 |
110 4.3 |
380 15 |
240 9.4 |
410 16.1 |
220 8.7 |
230 9.1 |
70 2.8 |
CT1/24-5 | 2.5 | 4 | 30 100 |
260 10.2 |
120 4.7 |
280 11 |
110 4.3 |
380 15 |
240 9.4 |
410 16.1 |
220 8.7 |
230 9.1 |
70 2.8 |
CT1/24-6 | 2.5 | 4 | 35 115 |
260 10.2 |
120 4.7 |
280 11 |
110 4.3 |
380 15 |
240 9.4 |
410 16.1 |
220 8.7 |
230 9.1 |
70 2.8 |
CT1/24-7 | 2.5 | 4 | 40 130 |
260 10.2 |
120 4.7 |
300 11.8 |
150 5.9 |
450 17.7 |
240 9.4 |
490 19.3 |
265 10.4 |
230 9.1 |
110 4.3 |
CT1/24-8 | 2.5 | 4 | 45 150 |
260 10.2 |
120 4.7 |
300 11.8 |
150 5.9 |
450 17.7 |
240 9.4 |
490 19.3 |
265 10.4 |
230 9.1 |
110 4.3 |
CT1/24-9 | 2.5 | 4 | 50 165 |
260 10.2 |
120 4.7 |
300 11.8 |
150 5.9 |
450 17.7 |
240 9.4 |
490 19.3 |
265 10.4 |
230 9.1 |
110 4.3 |
CT1/43-1 | 4 | 3 | 10 30 |
260 10.2 |
120 4.7 |
200 7.9 |
110 4.3 |
300 11.8 |
240 9.4 |
330 13 |
180 7.1 |
230 9.1 |
70 2.8 |
CT1/43-2 | 4 | 3 | 15 50 |
260 10.2 |
120 4.7 |
200 7.9 |
110 4.3 |
300 11.8 |
240 9.4 |
330 13 |
180 7.1 |
230 9.1 |
70 2.8 |
CT1/43-3 | 4 | 3 | 20 70 |
260 10.2 |
120 4.7 |
200 7.9 |
110 4.3 |
380 15 |
240 9.4 |
410 16.1 |
220 8.7 |
230 9.1 |
70 2.8 |
CT1/43-4 | 4 | 3 | 25 85 |
260 10.2 |
120 4.7 |
250 9.8 |
110 4.3 |
380 15 |
240 9.4 |
410 16.1 |
220 8.7 |
230 9.1 |
70 2.8 |
CT1/43-5 | 4 | 3 | 30 100 |
260 10.2 |
120 4.7 |
300 11.8 |
150 5.9 |
450 17.7 |
240 9.4 |
490 19.3 |
265 10.4 |
230 9.1 |
110 4.3 |
CT1/43-6 | 4 | 3 | 35 115 |
270 10.6 |
120 4.7 |
300 11.8 |
150 5.9 |
450 17.7 |
250 9.8 |
490 19.3 |
265 10.4 |
230 9.1 |
110 4.3 |
CT1/43-7 | 4 | 3 | 40 130 |
300 11.8 |
150 5.9 |
300 11.8 |
150 5.9 |
17.7 17.7 |
280 11 |
490 19.3 |
265 10.4 |
260 10.2 |
110 4.3 |
CT1/43-8 | 4 | 3 | 45 150 |
300 11.8 |
150 5.9 |
300 11.8 |
150 5.9 |
450 17.7 |
280 11 |
490 19.3 |
265 10.4 |
260 10.2 |
110 4.3 |
CT1/43-9 | 4 | 3 | 50 165 |
300 11.8 |
180 7.1 |
350 13.8 |
150 5.9 |
500 19.7 |
310 12.2 |
540 21.3 |
290 11.4 |
290 11.4 |
110 4.3 |
CT1/44-1 | 4 | 4 | 10 30 |
260 10.2 |
120 4.7 |
200 7.9 |
110 4.3 |
300 11.8 |
240 9.4 |
330 13 |
180 7.1 |
230 9.1 |
70 2.8 |
CT1/44-2 | 4 | 4 | 15 50 |
260 10.2 |
120 4.7 |
200 7.9 |
110 4.3 |
350 13.8 |
240 9.4 |
380 15 |
205 8.1 |
230 9.1 |
70 2.8 |
CT1/44-3 | 4 | 4 | 20 70 |
260 10.2 |
120 4.7 |
200 7.9 |
110 4.3 |
380 15 |
240 9.4 |
410 16.1 |
220 8.7 |
230 9.1 |
70 2.8 |
CT1/44-4 | 4 | 4 | 25 85 |
260 10.2 |
120 4.7 |
250 9.8 |
110 4.3 |
380 15 |
240 9.4 |
410 16.1 |
220 8.7 |
230 9.1 |
70 2.8 |
CT1/44-5 | 4 | 4 | 30 100 |
260 10.2 |
120 4.7 |
300 11.8 |
150 5.9 |
450 17.7 |
240 9.4 |
490 19.3 |
265 10.4 |
230 9.1 |
110 4.3 |
CT1/44-6 | 4 | 4 | 35 115 |
270 10.6 |
120 4.7 |
300 11.8 |
150 5.9 |
450 17.7 |
250 9.8 |
490 19.3 |
265 10.4 |
230 9.1 |
110 4.3 |
CT1/44-7 | 4 | 4 | 40 130 |
300 11.8 |
150 5.9 |
300 11.8 |
150 5.9 |
450 17.7 |
280 11 |
490 19.3 |
265 10.4 |
260 10.2 |
110 4.3 |
CT1/44-8 | 4 | 4 | 45 150 |
300 11.8 |
150 5.9 |
300 11.8 |
150 5.9 |
450 17.7 |
280 11 |
490 19.3 |
265 10.4 |
260 10.2 |
110 4.3 |
CT1/44-9 | 4 | 4 | 50 165 |
300 11.8 |
180 7.1 |
350 13.8 |
150 5.9 |
500 19.7 |
310 12.2 |
540 21.3 |
290 11.4 |
290 11.4 |
110 4.3 |
※The specifications are subject to change without notice for improvement.
