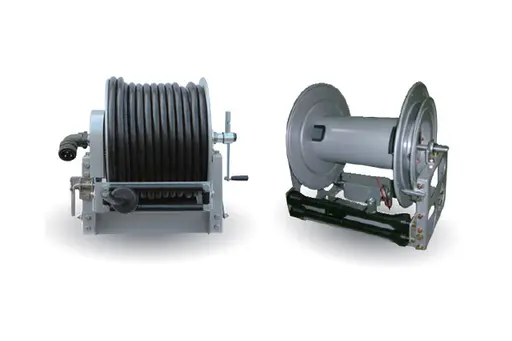

REELTEC
REELTEC
Description
Uses : Collapsible Hose, Cable, Rope, Wire, Chain.
Design & Structure
- Reels have no swivel, no riser & no conductors.
- Lightweight compact reels designed for long lengths of hose ni power rewind
- If it is power rewind,Motor is installed outside of the Ree.
- Power rewind reels are not supplied with switch but can be ordered separately
- Chain and sprocket drive powered by electric, hydraulico, r compressed air motor.
- Direct crank rewind is permanently attached (Direct crank rewind is removable when you need.)
- Roller guides are option(Specify roller position when ordering.)
- Brake System:cam-lock drag brake or spring actuated pin lock(Supplied with spring actuated pin lock as standard)
- All materials are carbon steel as standard (Stainless,Aluminum and other materials are available upon request)
- Bevel Geared Crank is optional (Direct Crank as standard)
- Option: Automatic guide, Speed controller and Clutch are available.
- Other specifications are available.
Painting : Powder Coat.
| MODEL NO. | HOSE CAPACITY | REEL DIMENSIONS | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| I.D | LEN GTH | A | B | C | D | E | F (MANUAL) |
F (POWER) |
G | H | X | Y | |
| mm inch | meter feet | mm inch |
mm inch | mm inch | mm inch | mm inch | mm inch | mm inch | mm inch | mm inch | mm inch | mm inch | |
| SR1/6-54 | 6 1/4" |
275 900 |
310 12.2 |
150 5.9 |
150 5.9 |
350 13.8 |
380 15.0 |
435 17.1 |
635 25.0 |
430 16.9 |
240 9.4 |
270 10.6 |
300 11.8 |
| SR1/6-72 | 6 1/4" |
365 1200 |
340 13.4 |
180 7.1 |
150 5.9 |
350 13.8 |
380 15.0 |
465 18.3 |
665 26.2 |
430 16.9 |
240 9.4 |
300 11.8 |
300 11.8 |
| SR1/9-29 | 9 3/8" |
150 500 |
340 13.4 |
180 7.1 |
150 5.9 |
350 13.8 |
380 15.0 |
465 18.3 |
665 26.2 |
430 16.9 |
240 9.4 |
300 11.8 |
300 11.8 |
| SR1/9-39 | 9 3/8" |
200 650 |
400 15.7 |
240 9.4 |
150 5.9 |
350 13.8 |
380 15.0 |
525 20.7 |
725 28.5 |
430 16.9 |
240 9.4 |
360 14.2 |
300 11.8 |
| SR1/9-54 | 9 3/8" |
275 900 |
510 20.1 |
350 13.8 |
150 5.9 |
350 13.8 |
380 15.0 |
635 25.0 |
835 32.9 |
430 16.9 |
240 9.4 |
470 18.5 |
300 11.8 |
| SR1/9-60 | 9 3/8" |
305 1000 |
560 22.0 |
400 15.7 |
150 5.9 |
350 13.8 |
380 15.0 |
685 27.0 |
885 34.8 |
430 16.9 |
240 9.4 |
520 20.5 |
300 11.8 |
| SR1/13-17 | 13 1/2" |
90 300 |
400 15.7 |
240 9.4 |
150 5.9 |
350 13.8 |
380 15.0 |
525 20.7 |
725 28.5 |
430 16.9 |
240 9.4 |
360 14.2 |
300 11.8 |
| SR1/13-29 | 13 1/2" |
150 500 |
510 20.1 |
350 13.8 |
150 5.9 |
350 13.8 |
380 15.0 |
635 25.0 |
835 32.9 |
430 16.9 |
240 9.4 |
470 18.5 |
300 11.8 |
| SR1/13-39 | 13 1/2" |
200 650 |
610 24.0 |
450 17.7 |
150 5.9 |
350 13.8 |
380 15.0 |
735 28.9 |
935 36.8 |
430 16.9 |
240 9.4 |
570 22.4 |
300 11.8 |
※ The specifications are subject to be changed without previous notice for improvement.
