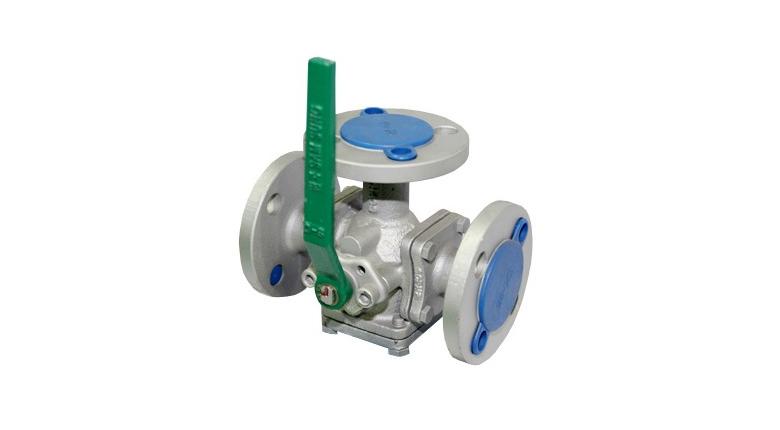

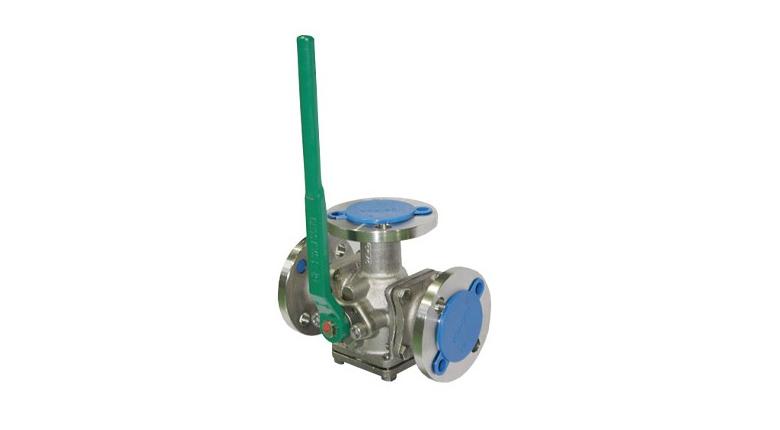

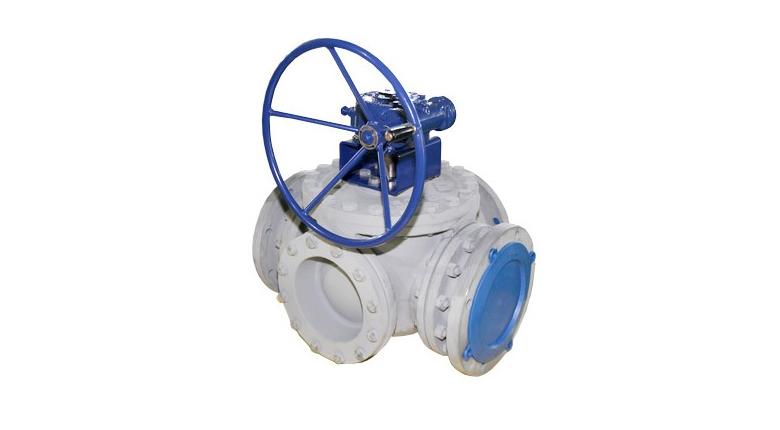

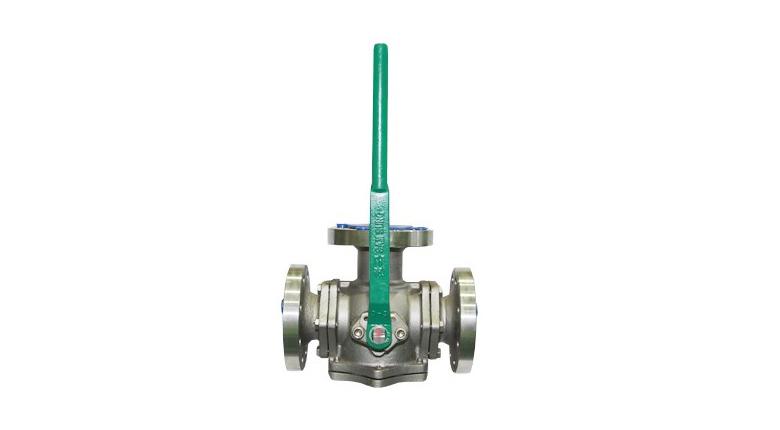

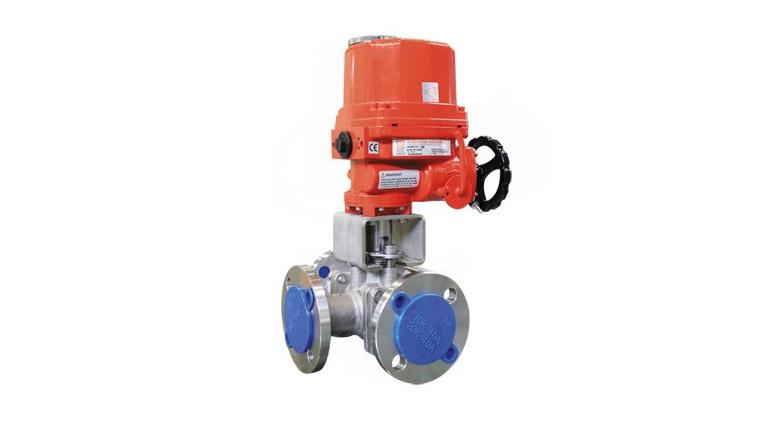

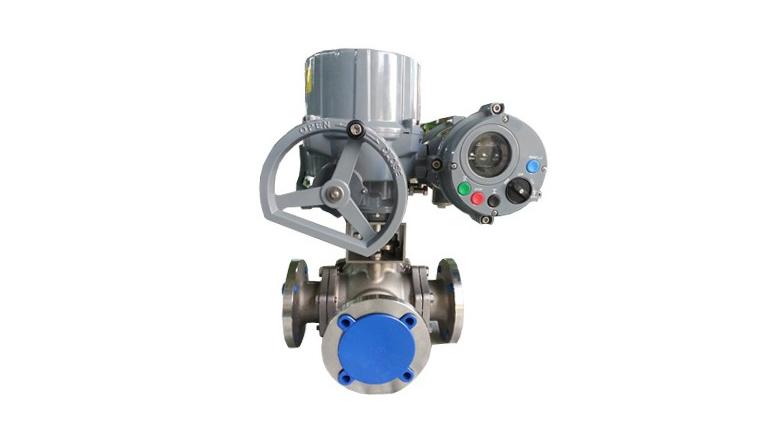

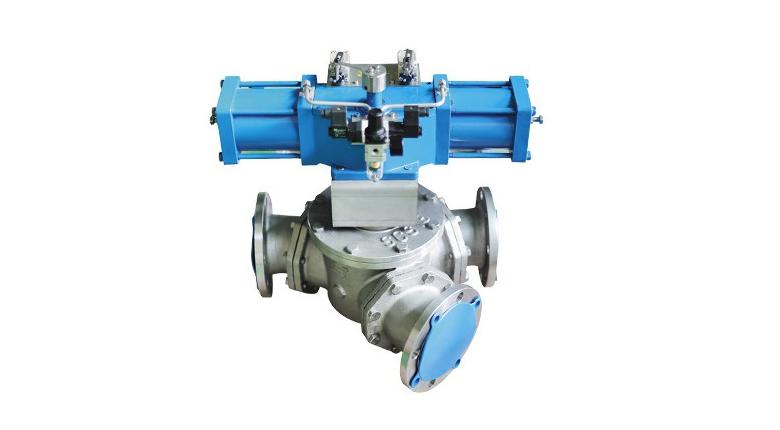

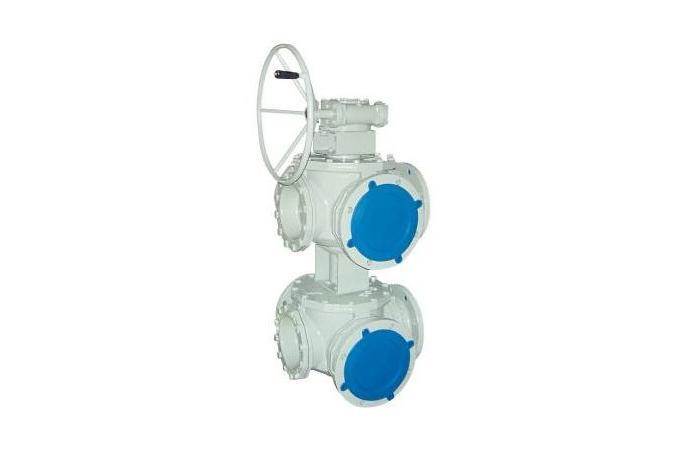

3-Way ball valve
Model Name
-
Data
-
Manufacturer information
provider logo
Samsung Precision

3 way valve and Jacket ball valve manufacturer

Problem with product info?
Update request
Manufacturer
Samsung Precision
Brand
-
SKU
28929
Product Name
3-Way ball valve
Model Name
-
Size
-
Weight
-
Product Details

  3-Way ball valve


1. Manufacturing scope

Size : T/T-Port & T/L-Port DN15 (1/2") ~ DN350 (14")
Y-Type (Divert) DN65 (2-1/2") ~ DN400 (16")
Pressure Rating : Class 150, JIS 10K
Working Temperature : '-29°C ~ +180°C


2. Standard Features

Face to face : Maker standard
End flange : ASME B16.5 , JIS B2238
Shell wall thickness : ASME B16.34 & BS5351
Anti-static device
Locking device
Blow-out proof stem


Samsung Precision
3 way valve and Jacket ball valve manufacturer
We, "SAMSUNG PRECISION IND. CO., LTD." are specialized in ball valve manufacturing since our foundation year in 1982, with zero - defect, high quality and competitive pricing. We produce various types of manual ball valves and special valves with state of the art testing equipment and international approval ISO 9001 & API Q1 quality systems. SAMSUNG, as a specialized valve manufacturer will make the highest quality products and guarantee complete satisfaction for our domestic and overseas customers.
