전력 및(또는) 전류 형 복합모터보호계전기
Model Name
DSP-CCM-N
Series
Motor Protection Relay
Data
-
Manufacturer information
provider logo
SAMWHA DSP

Motor protection relay, DSP, VIP, Solid State Relay, SSR, WKS, SCR Unit

Problem with product info?
Update request
Manufacturer
SAMWHA DSP
Brand
-
SKU
57822
Product Name
전력 및(또는) 전류 형 복합모터보호계전기
Model Name
DSP-CCM-N
Size
-
Weight
-
Product Details

*Panel Flush Mounting Type(판넬 외장형):CCM-N (485통신기능)
DSP-CCM-N (보호기능 : 과전류, 결상, 력상, 지락, RS-485통신, Meter 정역운전)
*기본형:외부ZCT 적용, 주문형:ZCT 내장
■ 다양한 출력 접점 응용
- 적용 모드 : out/a/b
- 접점 동작 형태 : 출력 접점 형태:95-96-98,C-F-R-rCS
■MCU based 정확한 보호기능 실행
■ Protection Level:초소형 다기능 4E Class
*보호기능:과전류/저전류/결상/역상/불평형/구속/쇽크(Stall)/지락
■ 지락보호를 위한 동작:0.1~3초
■ 3상 전류,부하률 ,지락전류,누적운전시간 순환표시:3초 간격
■ 지락 전류 검출 보호:30mA ~4A
■ PC 관리 Network 통신을 위한 디지털 통신
*RS-485통신 : CCM-N Type
■ 자동,수동 복귀:모드상에서 선택 적용(관리자 Password복귀기능)

▶주의 : Inverter 적용 계전기 위치는 인버터 2차 출력단에 설비할것.

*DSP-CCM(Digital Standard Protection- Current Communiction Meter),



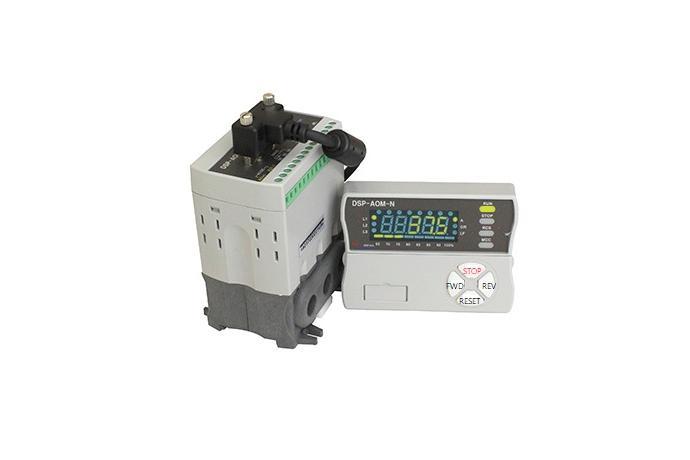

(주)삼화디에스피 전력 및(또는) 전류 형 복합모터보호계전기 DSP-CCM-N

(주)삼화디에스피 전력 및(또는) 전류 형 복합모터보호계전기 DSP-CCM-N 1

(주)삼화디에스피 전력 및(또는) 전류 형 복합모터보호계전기 DSP-CCM-N 2

(주)삼화디에스피 전력 및(또는) 전류 형 복합모터보호계전기 DSP-CCM-N 3
