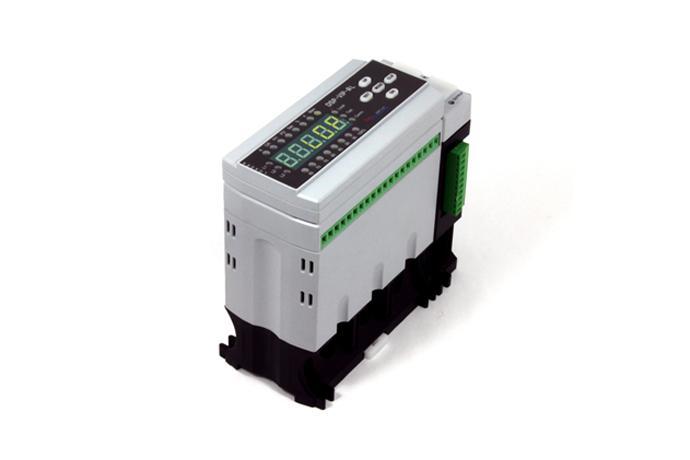

product Image
DC500V Insulation Resist Measurement
Model Name
DSP-VIP-RTL(RL)
Series
Motor Protection Relay
Data
-
Manufacturer information
provider logo
SAMWHA DSP

Motor protection relay, DSP, VIP, Solid State Relay, SSR, WKS, SCR Unit

Problem with product info?
Update request
Manufacturer
SAMWHA DSP
Brand
-
SKU
57824
Product Name
DC500V Insulation Resist Measurement
Model Name
DSP-VIP-RTL(RL)
Size
-
Weight
-
Product Details

DSP-VIP-RTL/RL

Motor Protection Relay with DC500V Insulation resistance Measurement
 **NEP(New Excellent Product) approved by Government(NEP-MKE-2009-032)**
 **Motor Stopping:Insulation Tester, Motor Working:Protection Relay**
 *Panel Mounting Type:Converter,Loader,Communication Module
 *Protection:Over/Under Current,Ground fault,Over Temp,Shock,Locked Rotor,Phase Loss,Reverse Phase
 *Indication:A,GR,TEMP,Insulation resistance(Line-earth),working time,Number of ON-OFF/MC
 *Measuring range for Insulation Resiatance:0.1MOhm ~ 500MOhm/500VDC
 *Alarm before trip:65~100% of "OC"
 *Additional Function:RS 422/485,232,,Shut down delay timer & Delay on-make timer
 *Pre-maintenance:Able to preset alarm point/O,U curr.GF,Temp,Shock(Stall),Number of MC ON-OFF,MOTOR working time,
 *Particulary Useful for process control and pre-maintenance as presetting various alarm factor



SamWha DSP DC500V Insulation Resist Measurement DSP-VIP-RTL(RL)

SamWha DSP DC500V Insulation Resist Measurement DSP-VIP-RTL(RL) 1

SamWha DSP DC500V Insulation Resist Measurement DSP-VIP-RTL(RL) 2

SamWha DSP DC500V Insulation Resist Measurement DSP-VIP-RTL(RL) 3

SAMWHA DSP
Motor protection relay, DSP, VIP, Solid State Relay, SSR, WKS, SCR Unit
SamWha DSP was established in Jan,2007 to unify with WonKwang Electrical Instrument which had been developed SSR(Solid State Relay) and dominated a most of market share since 1986.Hereafter SamWha DSP added motor protection relay additionally into new product.SamWha has been experienced for operating and controlling lots of kind of motor for 30 years.As you are agreed, the business is globalized and a domestic market environment for electronic motor protection relay has been chagned in recent.Hence SamWha made a deceision to make third generation motor protection relay, DSP-VIP series. Our goal is to expand our business not only into the domestic, but also into the global market.SamWha DSP has already met a proper certificate, patent and test by official test institute in Korea to achieve our goal.We promise to lead a business market for motor protection relay, not only in the domestic but also in the overseas, as continuing endless effort to lift SSR and VIP up to the top position in the world.
