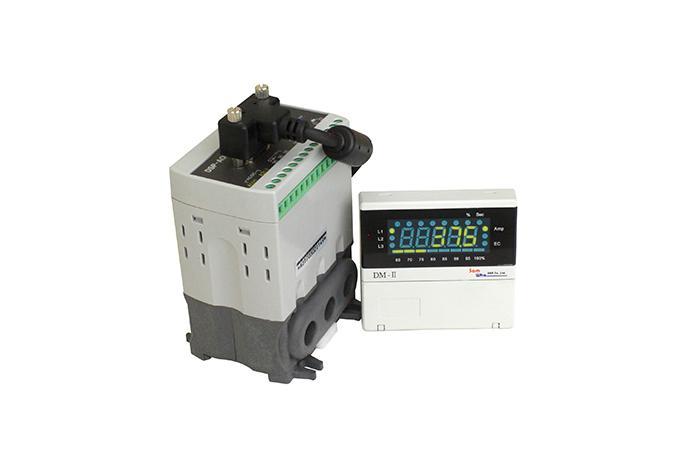

product Image

TOP

전류 A-Type(AOM/AOL=>4E급 계전기 ZCT 내외장형)
Model Name
AOM-RG
Series
Motor Protection Relay
Data
-
Manufacturer information
provider logo
SAMWHA DSP

Motor protection relay, DSP, VIP, Solid State Relay, SSR, WKS, SCR Unit

Problem with product info?
Update request
Manufacturer
SAMWHA DSP
Brand
-
SKU
57832
Product Name
전류 A-Type(AOM/AOL=>4E급 계전기 ZCT 내외장형)
Model Name
AOM-RG
Size
-
Weight
-
Product Details

AOM-RG(3CT영상전류)

*Panel Flush Mounting Type(판넬 외장형)AOM-RG
*Panel Mounting Type(판넬 내장형)AOL-RG
*DSP-AOM-RG, DSP-AOL-RG (보호기능 : 기본4E)
*ZCT를 적용하지 않음, 직접접지 수전에 적용하는 3CT잔류전류 영상검출방식
*높은 경쟁력(ZCT없는 영상전류 검출형으로 매우 경제적임)
■ 다양한 출력 접점 응용
- 접점 동작 형태 : 출력 접점 형태:95-96-98,05-06-08
■MCU based 정확한 보호기능 실행
■ Protection Level:초소형 다기능 4E Class
 *보호기능:과전류/저전류/결상/역상/불평형/구속/지락
■ 지락보호를 위한 동작:1~3초
■ 3상 전류,부하률 ,지락전류,누적운전시간 순환표시:3초 간격
■ 지락 전류 검출 보호:500mA ~10A
■지락 잔류전류 검출로 외부CT적용시 사용이 불가하며 부하전류 70A 이하에 사용함
▶주의 : Inverter 적용 계전기 위치는 인버터 2차 출력단에 설비하여야 합니다.



(주)삼화디에스피 전류 A-Type(AOM/AOL=>4E급 계전기 ZCT 내외장형) AOM-RG

(주)삼화디에스피 전류 A-Type(AOM/AOL=>4E급 계전기 ZCT 내외장형) AOM-RG 1

(주)삼화디에스피 전류 A-Type(AOM/AOL=>4E급 계전기 ZCT 내외장형) AOM-RG 2

(주)삼화디에스피 전류 A-Type(AOM/AOL=>4E급 계전기 ZCT 내외장형) AOM-RG 3
