This product is manufactured by
SAMWHA DSP
Manufacturer information
SAMWHA DSP
Motor protection relay, DSP, VIP, Solid State Relay, SSR, WKS, SCR Unit
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
SAMWHA DSP
Brand
-
SKU
57842
Product Name
전류형 C-Type : 전류, 지락, ZCT내장형

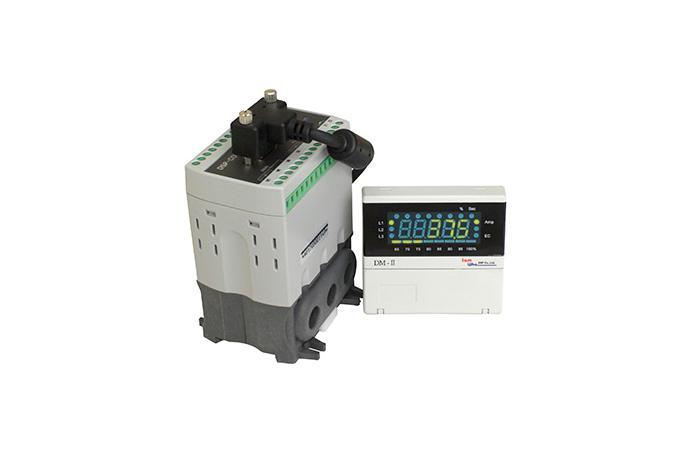

Model Name
DSP-COM
Size
-
Weight
-
Product Details
*Panel Flush Mounting Type(판넬 외장형):COM
DSP-COM(보호기능 : 기본4E)
*Panel Flush Mounting Type(판넬외장형,메타 분리형) :COM
*기본형:외부ZCT 적용, 주문형:ZCT 내장
*높은 경쟁력(설비조건 동급 최저가격)
■ 다양한 출력 접점 응용
- 적용 모드 : out/LooFF/a/b
- 접점 동작 형태 : 출력 접점 형태:95-96-98,05-06-08
■MCU based 정확한 보호기능 실행
■ Protection Level:초소형 다기능 4E Class
*보호기능:과전류/저전류/결상/역상/불평형/구속/쇽크(Stall)/지락
■ 지락보호를 위한 동작:0.1~3초
■ 3상 전류,부하률 ,지락전류,누적운전시간 순환표시:3초 간격
■ 지락 전류 검출 보호:30mA ~4A
■ 자동,수동 복귀:모드상에서 선택 적용(관리자 Password복귀기능)
▶주의 : Inverter 적용 계전기 위치는 인버터 2차 출력단에 설비할것.
*DSP-COM(Digital Standard Protection- Current Over Meter),
