지락전류 계전기
Model Name
DGFR
Series
The Others
Data
-
Manufacturer information
provider logo
SAMWHA DSP

Motor protection relay, DSP, VIP, Solid State Relay, SSR, WKS, SCR Unit

Problem with product info?
Update request
Manufacturer
SAMWHA DSP
Brand
-
SKU
58067
Product Name
지락전류 계전기
Model Name
DGFR
Size
-
Weight
-
Product Details

지락전류 보호계전기(Digilog)
◆초소형 콤팩트 사이즈,판넬 내장형
◆MCU(Microprocessor Control Unit)적용
◆초고감도,광대역 지락전용 보호 :30mA~4A
◆정확한 영상전류,동작시간 설정 :3 Digit Window
◆적용계통 상태에 따른 다양한 대응:Edt,Eot 설정
◆다양한 영상전류 검출 방법 선택
A형 : ZCT - 200mA/1.5mA : 30mA~4A
V형 : ZCT - 200mA/100mV : 30mA~4A
N형 : NCT - 100A/5A :200mA~10A
◆자기진단 기능 보유:""SET"" key를 3초 이상 누르면 설정된 Eot를 Count down후 출력 리레이가 트립됨"
◆운전중 설정값 확인:"SET" key를 1초간 터치하면 설정된 값을 확인할수 있음

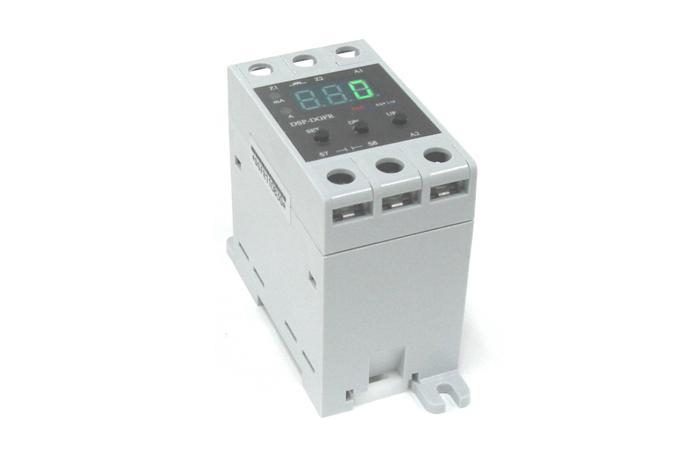

(주)삼화디에스피 지락전류 계전기 DGFR

(주)삼화디에스피 지락전류 계전기 DGFR 1

(주)삼화디에스피 지락전류 계전기 DGFR 2

(주)삼화디에스피 지락전류 계전기 DGFR 3
