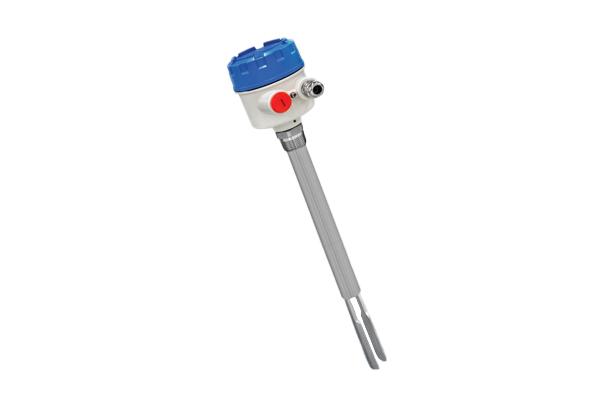

product Image

TOP

Vibrating Folk Type Level Switch
Model Name
SVF Series
Series
Level Switch
Data
Catalog-Seojin instech-Vibrating folk type level switch (SVF)
Manufacturer information
provider logo
SEOJIN INSTECHLevel sensor, Switch, Siemens, Transmitter, Ultrasonic, Radar, Flowmeter, Water level gauge, Orifice
Problem with product info?
Update request
Manufacturer
SEOJIN INSTECH
Brand
-
SKU
131483
Product Name
Vibrating Folk Type Level Switch
Model Name
SVF Series
Size
-
Weight
-
Product Details



TYPE & MODEL Vibrating Folk Type Level Switch
PRINCIPLE The tuning fork type vibration probe of new SVF series is using the driven piezoelectric crystal cell and the response piezoelectric crystal cell at tip end of tuning fork. When the driven piezoelectric crystal cell is energized, the driven piezoelectric crystal cell and response piezoelectric crystal cell are attacked and repulsed. This movement makes vibration. The construction of tuning fork type vibration probe is similar to the motor. When the motor is energized by the battery, the back electromotive current is generated by the influence of response piezoelectric crystal cell and coil. When the tuning fork type vibration probe is covered with all kinds of liquid, solids or powdered material, the current flowing to the lead wire is increased by damping of the back electromotive current. The amplifier detects the shifting of current level, and converts to output signal.
TEMPERATURE PRESSURE  OUTPUT
  • -25 ~ +60℃ Std. / -25 ~150℃ (Option)
  • Operating Pressure 20 Bar(SVF-200/300) / 5 Bar (SVF-400)
  • Relay Output
  • 1 DPDT Relay (Resistive Load) 5A @ 250 Vac, 30 Vdc
POWER SUPPLY APPLICATION
  • Power
  • Supply 85 ~264 VAC 50/60 Hz.
  • Consumption 5W
  • Measures Sensitivity
  • Liquid density : Min 0.8 g/cm3
  • Bulk Weight : Min. 100 g/l ( 0.1 g/cm³)
  • Particle Size Limit Max. 10mm
  • Probe End Static Load 1.25kN. Std N.A (Top Mount)
INDUSTRY Building/Factory Automation, Industrial Plant, Petrochemistry, Environmental Water Treatment

MODEL: SVF-200, SVF-300, SVF-400
