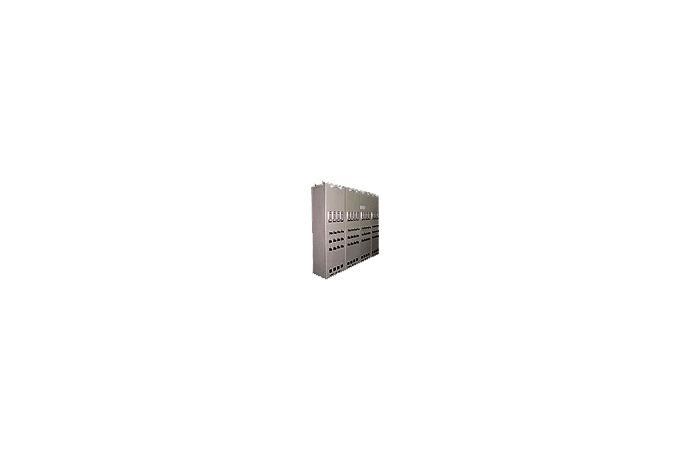

345kV Circuit Breaker Failure Protection Relay Panel
Model Name
GRC100-101A
Series
Switchgear
Data
-
Manufacturer information
provider logo
Seondo Electric

Distributing panel facility manufacturer, Solar heating system, Smoke reducing device and Electric work

Problem with product info?
Update request
Manufacturer
Seondo Electric
Brand
-
SKU
40161
Product Name
345kV Circuit Breaker Failure Protection Relay Panel
Model Name
GRC100-101A
Size
-
Weight
-
Product Details

Apply  one-and-of half breaker busbar.

Overcurrent relay element
Automatic supervision
Human interface (LED's LCD,RS230C,RS485 Communication Port)
IRIG-B Time Synchronization


Seondo Electric 345kV Circuit Breaker Failure Protection Relay Panel GRC100-101ARated
Current1A or 5A
Frequency50Hz , 60Hz
DC power supply110Vdc / 125Vdc
(Normal range -20% and +20%)
Operating timebelow 1 cycle
Timer for retrip0-500ms (1ms steps)
Timer for adjustment
CB Trip
50-500ms (1ms steps)
Protection relay panel size700(W) x 600(D) x 2350(H)

Seondo Electric
Distributing panel facility manufacturer, Solar heating system, Smoke reducing device and Electric work
With our customers' support and encouragement, Seondo Electric Co., Ltd. has been developing as a manufacturer of heavy electric equipments since its foundation in 1972. Particularly our company is proud of being a manufacturer and seller of all sorts of distributing panels, protective relay panels, Gas Insulation System (GIS), Vacuum Insulation System, Load Make and Break, Remote Surveillance Control System, and General Automation System, which are supplied for Transmission and Supply of Electricity Line of KEPCO, or Atomic Energy Power Plant, Water and Fire Power Plant, and all sorts of plants.  United together, all executives and employees at our company are endeavoring to our utmost under the motto of the company, "Live Industriously!," by working for the complete after-service-warranty and environment-friendly management system, and gratifying customers' expectations.  Moreover, in an age of globalization of new millenium, our company has been extending its overseas market to Middle East and Americas as well as South East Asia. In addition to this, our company has devoted all its energy in doing research for and developing in strategic enterprises such as future direction of electrical technology, fuzzy heavy electrical equipments grafted by advanced informational technology, automation system, and environment-friendly products.
