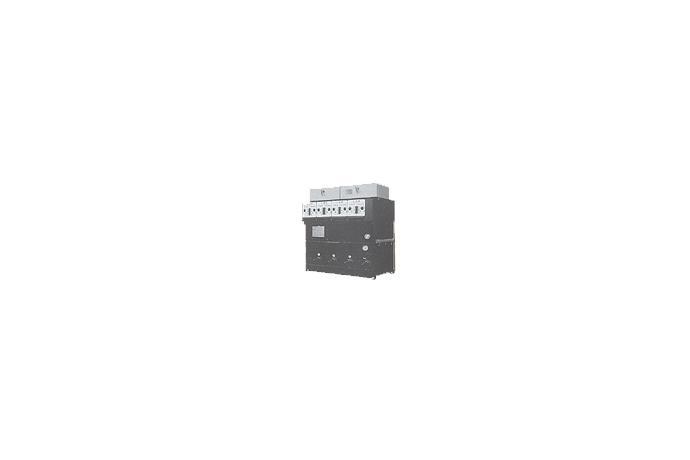

Gas Load Insulatted Breaker Switch (25.8KV)
Model Name
SDP Series
Series
Switchgear
Data
-
Manufacturer information
provider logo
Seondo ElectricDistributing panel facility manufacturer, Solar heating system, Smoke reducing device and Electric work
Problem with product info?
Update request
Manufacturer
Seondo Electric
Brand
-
SKU
40162
Product Name
Gas Load Insulatted Breaker Switch (25.8KV)
Model Name
SDP Series
Size
-
Weight
-
Product Details

Apply  This unit is used to break the load in the distribution of 25.8KV 600A under-the-land line.



Insulation, break, and simple grounding by SF6 Gas

  - It guarantees perfect break capacity by high insulation and excellent fire-fighting
   capacity of SF6 Gas.
 - The danger of fire is none by using inflammable SF6 Gas.
 - The use of Puffer fire-fighting type in which SF6 Gas is compressed I the cylinder
   allows excellent opening-closing capacity.
 - Both the opening-closing surge occurring when using vacuum interrupter and flash
   over phenomenon by charged electric current of cable do not happen.
 - The grounding switch inside allows grounding with a simple operation.

High safty, complete maintenance free

  - The use of inflammable SF6 Gas allows no possibility of fire, so that it can be used
   at anyplace inside and outside the house.
 - SF6 Gas is none-toxic, no-harmful with high stability.
 - Since it is manufactured with perfect sealing-up by TIG welding and simple tools,
   it does not require maintenance.

Complete water-proof and rust-proof

  The main body of opening-closing panel is welded with stainless steel, and is covered with resin, so that it has no rust.

Small size and light-weight

  The insulation method of SF6 Gas and a simple design of operational tools allow a small size and light weight, which minimizes the space for installation.


TYPEFEATURERated Voltage (KV)Rated CURRENT (A)VOLTAGE WITHIN IMPACT (KA)
SDP-4D-M1
(4W/4S)
 25.8 KV600 A125 KV
SDP-4D-A1
(4W/4S)
 25.8 KV600 A125 KV
SDP-3D-M1
(3W/3S)
 25.8 KV600 A125 KV
SDP-3D-A1
(3W/3S)
 25.8 KV600 A150 KV
SectionSDP-4D-M1
(4W/4S)
SDP-4D-A1
(4W/4S)
SDP-3D-M1
(3W/3S)
SDP-3D-A1
(3W/3S)
Rated Voltage25.8 KV
Rated Current600 A
Rated Frequency60 Hz
Electric Current Opening-Closing Capacity100% Load Electric Current Opening-Closing Capacity600 A
5% Load Electric Current Opening-Closing Capacity-30 A
Female Electric Current Opening-Closing Capacity21 A
Cable Charged Electric Current Opening-Closing Capacity25 A25 A
Rail Charged Electric Current Opening-Closing Capacity1.5 A
Loop Electric Current Opening-Closing Capacity600 A
Short Time Electric Current12.5 kA / 1 sec.
Making Current32.5 kA
Common use Frequency Interior Voltgate60 kA / 1 min.
Direct Current Interior Voltage78 kV / 15 min.
Impact Interior Voltage125 kV150 kV
Pressure Within (at 20℃)Standard Gas Pressure0.7 kg/cm2
Operation TypeManualAutomaticManualAutomatic
Insulation MediumSF6 GAS
Approx Weight400 kg500 kg350 kg350 kg
Applied SizeTemporary Standard Purchase Specifications by Korea Electric Company (PS151-143~145, PS 151-165, PS151-161~179)
