Specifications
| Model | Description |
|---|---|
|

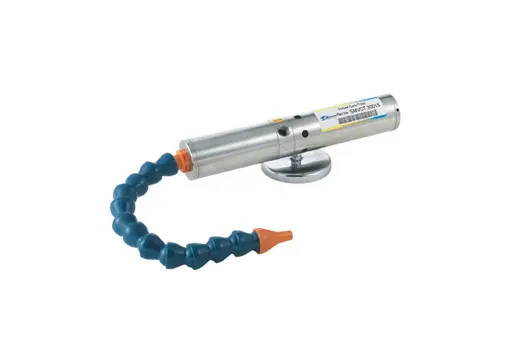

SMVCT 30008M SMVCT 30010M SMVCT 30015M SMVCT 30025M SMVCT 30035M |
Vortex Cool Tool and Magnetic Base |
|

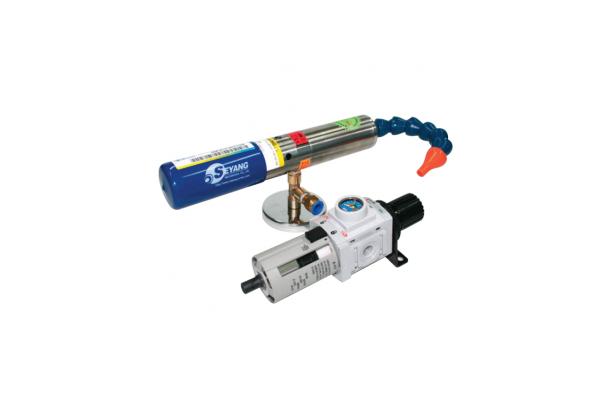

SMVCT 30308M SMVCT 30310M SMVCT 30315M SMVCT 30325M SMVCT 30335M |
Vortex Cool Tool System including Magnetic Base Flex Hose and Filter |
Vortex Cool Tool Dimensions
Type Nomenclature
Specifications
| Model | Material | Inlet Pressure | Air Consumption | Cooling Capacity | ||
|---|---|---|---|---|---|---|
| PSIG (bar) | SCFM | (ℓ/min) | BTU/h | Kcal/h | ||
| SMVCT 30008M | Stainless Steel |
100 (7) |
8 |
220 |
580 |
146 |
| SMVCT 30010M |
100 (7) |
10 |
600 |
600 |
151 |
|
| SMVCT 30015M |
100 (7) |
15 |
1100 |
1100 |
277 |
|
| SMVCT 30025M |
100 (7) |
25 |
2500 |
2500 |
629 |
|
| SMVCT 30035M |
100 (7) |
35 |
3500 |
3500 |
881 |
|
| SMVCT 30308M | Stainless Steel |
100 (7) |
8 |
580 |
580 |
146 |
| SMVCT 30310M |
100 (7) |
10 |
600 |
600 |
151 |
|
| SMVCT 30315M |
100 (7) |
15 |
1100 |
1100 |
277 |
|
| SMVCT 30325M |
100 (7) |
25 |
2500 |
2500 |
629 |
|
| SMVCT 30335M |
100 (7) |
35 |
3500 |
3500 |
881 |
|
Vortex Cool Tool is a packaged vortex tube that is portable and ready to use cold air source. It is designed to improve machining operations and improve the life of the product and each part.
Vortex Cool Tool is supplied with a power source by Vortex Tube that uses only compressed air. Vortex Cool Tool produces a stream of air of 38°C (100°F) cooler than the initial temperature of the compressed air. It can be installed easily, using the magnetic base. The Cool Tool can be moved from one machine to another, and the nozzle (flex hose) can be positioned in any desired direction.
The Cool Tool will eliminate the need for mists and messy and expensive liquid coolants, and the noise is within 70 dBA. In addition, it will help a lot to improve productivity in the overall industry, with the features of long life, high quality, and durability.
The Cool Tool is set to 15 SCFM at the time of shipment from the factory. The Cool Tool is made of stainless steel, so it is free from oxidation or corrosion. It is designed to be used effectively in manufacturing and operations.
Operating Principle
Uses
- The products Vortex Cool
- Tool is used
- Grinding operations
- Set hot melt glue operations
- Sharpening tools
- Textile industry
- Surface grinding
- Band saw
- Injection machine
- Hot thermal bonding
- operation
- Drilling
- Tapping
- Processing
- machine, needle
- sewing
- Hot products
Features
Compact, portable, and easy to mount due to the attached magnetic base. Designed to improve the productivity of each process and machine operation and extend the life of the product and each part. Can eliminate the need for mists and messy and expensive liquid coolants
Benefits
- Enhanced work efficiency
- No maintenance
- Quiet, noise within70 dBA
- Clean cooling
- Improved tool life
- Easy conservation
- Cost savings
- Instant On and Off
