Specification
| Model | Material | Port Size | Intake | Processing Capacity (ℓ/min) |
|---|---|---|---|---|
| SMVAPN-22 | Nylon | 22mm | 10cmHg | 15(424) CFM |
| SMVAPS-38 | Stainless Steel | 38mm | 7.4cmHg | 42(1,189) CFM |
| SMVAPS-50 | Stainless Steel | 50mm | 6.2cmHg | 59(1,670) CFM |
| SMVAPS-75 | Stainless Steel | 75mm | 4.4cmHg | 106(3001) CFM |
(Note) The above table values supply pressure 87PSIG 6bar as basic measurements
Dimensions
Injection Performance (SMVAPN-22)
| Bar | Inlet Air Flow (㎥/min) |
Outlet Air Flow (㎥/min) |
|---|---|---|
| 1.4 | 0.181 | 1.520 |
| 2.8 | 0.296 | 2.359 |
| 4.2 | 0.393 | 2.900 |
| 5.5 | 0.510 | 3.365 |
Intake Performance Table (SMVAPN-22)
| Bar | Inlet Air Flow (㎥/min) |
Outlet Air Flow (㎥/min) |
|---|---|---|
| 1.4 | 0.190 | 0.415 |
| 2.8 | 0.310 | 2.101 |
| 4.2 | 0.428 | 2.590 |
| 5.5 | 0.529 | 2.930 |
Type Nomenclature

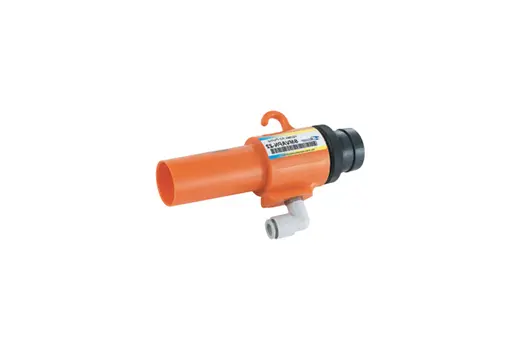

Vortex Air Pump
Vortex Air Pump is made by means of Vortex air amplification technology.
The materials are two kinds of plastic structure and stainless steel. During the air amplification, it induces as much as 25 times of air from the environment, then the negative pressure becomes the suction of the Vortex Air Pump. The induced air rushes out from the other side of the gun which produces strong blow-off power.
Method of Operation
A small amount of compressed air enters the annular orifice of the Vortex Air Pump. The compressed air accelerates to sonic speed as it exits the orifice. At the exit, the sonic speed air creates a low-pressure area (vacuum area) drawing in the surrounding air creating the amplification, and utilizing the free ambient air to create large flows. Vortex Deep Hole Cleaning Gun can be used according to the work situation because it can be changed to a vacuum (intake) or jet (blow off) by changing the position of nozzles. Vortex Air Pump is quiet, safe, and maintenance-free due to having no moving parts. Vortex Air Pump gives you high performance at industrial sites without electrical noise and with convenience.
When changing the position of the nozzle tube, the status is converted to vacuum (intake) or jet (blow off). Please make sure that the insertion of the gasket is perfect when changing the nozzle tube.
Applications
Convey plastic pellets into the hopper of the molding machine, vacuum, and intake
- Blowing off dust & chips
- Cleaning parts
- Cooling parts
- Cooling dies and molds
Stainless application
Glass processing, machining chips (Chips), glass bottles, a high-temperature cooling of vessel top, grains of appropriate size
Features
- Instant On and Off
- No moving parts
- No electrical noise
- Removal of foreign matters and chips
- Shock-resistant
- Lightweight and ergonomically designed
- Transfer of objects
Benefits
- Low cost
- Easy to control
- No maintenance
- Instant On and Off
- Suitable for various purposes of vacuum and intake
- No electricity
- Easy to handle
- Meets OSHA specifications
- Lightweight, easy to carry
