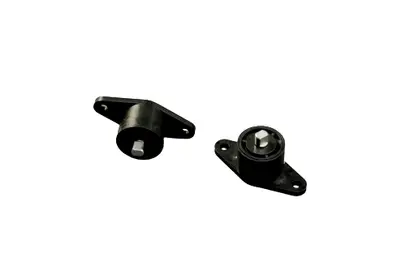

product Image
리버스록 (클릭메카)
Model Name
FRL-A1-202
Series
Rotary Damper
Data
-
Manufacturer information
provider logo
SEYANG MECHATRONICS

Rotary damper, Voltex tube, Air cooling machine, Air knife, Stopper cylinder, Buffer, In line filter

Problem with product info?
Update request
Manufacturer
SEYANG MECHATRONICS
Brand
-
SKU
139577
Product Name
리버스록 (클릭메카)
Model Name
FRL-A1-202, FRL-B1-502
Size
-
Weight
-
Product Details

사양

형 식 정격토르크 공전토르크
FRL-A1-202 0.2 ± 0.04 N·m (2±0.4 Kgf·cm) 0.01 N·m (0.1 Kgf·cm)
FRL-B1-502 0.5 ± 0.1 N·m (5±1 Kgf·cm) 0.15 N·m (0.15 Kgf·cm)









리버스록의 원리

베어링클러치의 원리를 이용한 클릭 기구 부품입니다. 회전 방향은 시계방 향, 반 시계 방향의 어느 곳에서도 상관없는데, 항상 어느 한쪽 방향이 잠겨져 있으며, 역순의 회전 방향에 대해서는 자유로운 상태입니다. 따라서 아래와 같이 덮개의 개폐에 있어서, 예를 들면 덮개를 들어 올려서 열 경우는 자유롭게 덮개가 닫히는 방향으로 잠금 토르크가 움직여서 덮개를 유지 시킵니다. 또 덮개를 닫고 싶은 경우는 덮개가 닫히는 방향으로 조금 힘을 주면, 잠금이 해제되고 덮개가 닫히게 됩니다.

주) 리버스록의 정격 토르크를 초과하는 질량의 덮개에는 사용하지 마십시오. 주의하십시오.
