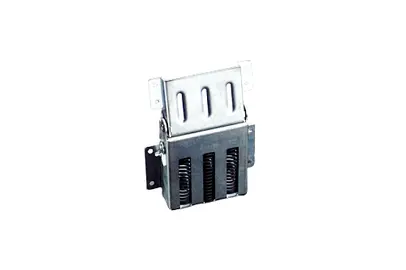

댐퍼형 스프링힌지
Model Name
DSH-B1-134
Series
Rotary Damper
Data
-
Manufacturer information
provider logo
SEYANG MECHATRONICS

Rotary damper, Voltex tube, Air cooling machine, Air knife, Stopper cylinder, Buffer, In line filter

Problem with product info?
Update request
Manufacturer
SEYANG MECHATRONICS
Brand
-
SKU
139578
Product Name
댐퍼형 스프링힌지
Model Name
DSH-B1-134
Size
-
Weight
-
Product Details

사양

형 식 DSH-B1-134
최대사용토르크 13 N·m(130kgf·cm)
스프링토르크 8.82±1.76 cN·m(θ=0。댐퍼형 폐지시 스프링토르크)
5.39±1.08 cN·m(θ=75。댐퍼형 개방시 스프링토르크)
동작각도 75±5。(힌지동작각도) / 25±5。(댐퍼동작각도)
사용온도범위 0~50℃
질량 1±0.2kg









DSH 동작 원리

스프링력에 의한 밸런스와 댐퍼력에 의한 속도 제어를 결합한 힌지입니다. (댐퍼는 중앙의 스프링에 내장되어 있습니다.)

θ3 (위로 올라가는 각도) :
이 영역에서는 덮개는 스프링력에 의해 위로 올라갑니다.
θ2 (프리스톱 각도) :
이 영역에서는 덮개는 스프링력과 맞춰 알아서 멈춥니다.
θ1 (댐퍼 동작 각도) :
이 영역에서는 덮개는 스프링력과의 밸런스가 없이 낙하하기 시작하지만, 댐퍼의 제동력이 움직이기 때문에, 덮개를 마지막까지 천천히 닫을 수 있습니다.

DSH 용도
※ 복사기 등 덮개 개폐부
※ 중량이 있는 각종 시험기기 등 개폐부
