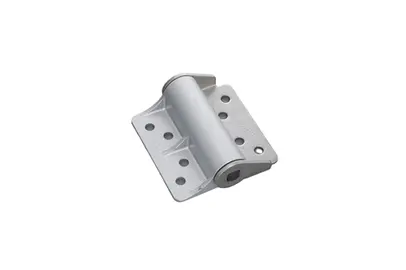

product Image
힌지 댐퍼 (일방향성/고정식)
Model Name
FHD-A1-1-503
Series
Rotary Damper
Data
-
Manufacturer information
provider logo
SEYANG MECHATRONICS

Rotary damper, Voltex tube, Air cooling machine, Air knife, Stopper cylinder, Buffer, In line filter

Problem with product info?
Update request
Manufacturer
SEYANG MECHATRONICS
Brand
-
SKU
139579
Product Name
힌지 댐퍼 (일방향성/고정식)
Model Name
FHD-A1-1-503, FHD-A1-2-503, FHD-A1-1-104, FHD-A1-2-104
Size
-
Weight
-
Product Details
최대사용각도 120°
사용온도범위 -5~50℃
제품질량 410g
본체케이스재질 다이캐스트(ZDC)+실버
힌지부분재질 SUS 304
사용오일 실리콘오일





사양

형 식 최대사용토르크 최대반전토르크
FHD-A1-1-503 5N·m ( 5 0 k g f · c m ) 0.6N·m 이상 ( 6 k g f · c m 이 상 )
FHD-A1-2-503
FHD-A1-1-104 10 N·m ( 1 0 0 k g f · c m ) 1N·m 이상 (10kgf·cm이상)
FHD-A1-2-104









댐퍼의 사용방법

  1. 댐퍼 설치 방법은 아래의 그림처럼 두 종류가 있습니다.
  2. 댐퍼 설치 방법은 가로 사용이 기본으로 되어 있기 때문에 세로 사용을 원하실 경우는 본사 기술부와 상담해 주십시오.





댐퍼의 특성

온도 특성
댐퍼 특성은 사용 환경 온도에 따라서 변화합니다. 일반적으로 온도가 올라가면 댐퍼 특성은 약해지고, 사용 온도가 내려가면 댐퍼 특성은 강해집니다. 이것은 댐퍼 내부의 오일 점도가 온도의 영향을 받아서 점성이 변화하기 때문에, 온도가 상온으로 돌아오면 댐퍼 특성도 원래대로 돌아옵니다.
