This product is manufactured by
SEYANG MECHATRONICS
Manufacturer information
SEYANG MECHATRONICS
Rotary damper, Voltex tube, Air cooling machine, Air knife, Stopper cylinder, Buffer, In line filter
Inquiry
How to order
Problem with product info?
Update request
Manufacturer
SEYANG MECHATRONICS
Brand
-
SKU
139601
Product Name

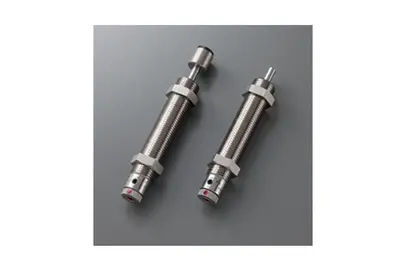

산업용 충격 완충기 (저속용,고속용,중속용-조정식)
Model Name
FA-1410RB-S/C, FA-1410RB-S/C, FWM-1410RBD-S/C
Size
-
Weight
-
Product Details
| 흡수에너지(J) | 3.92~5.88 |
|---|---|
| 스트로크(mm) | 10 |
| 등가질량(kg) | 4.5~35 |
| 충돌속도범위(m/s) | 0.3~3 |
| - | 27~28 |
사양
| 모델명 | 스토로그(mm) | 최대흡수에너지J(kgf/m) | 최대등가질량(kg(kgf)) | 가변속도범위(m/s) | 참조 |
|---|---|---|---|---|---|
| FA-1410RB-S/C | 10 | 3.92(0.4) | 30(30) | 0.3~1 | 단공식 |
| FA-1410RB-S/C | 5.88(0.6) | 4.5(4.5) | 0.7~3 | 다공식 | |
| FWM-1410RBD-S/C | 35(35) | 0.3~2 | 다공변칙식 |
공통사양
| 최대항력치(N(kgf)) | 최대사용사이클(cycle/min) | 1분당 최대 흡수에너지 J(min) (kgf m/min) |
피스톤로드복귀력 (N(kgf)) |
사용온도범위 (℃) | 질량 (S Type) (g) |
질량 (C Type) (g) |
|---|---|---|---|---|---|---|
| 1813(185) | 60 | 147(15) | 9.8(1.0) | -5~70 | 68 | 73 |
