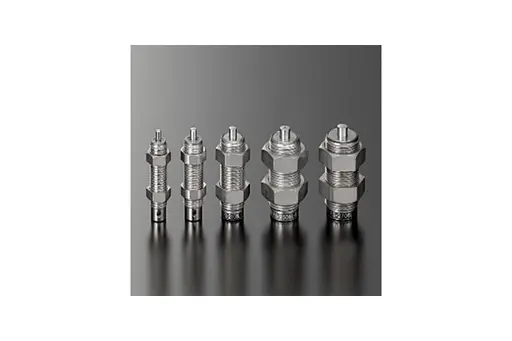

product Image
산업용 충격 완충기 (다공오리피스 고정식)
Model Name
FS-2006L-S
Series
Soft Absorber
Data
-
Manufacturer information
provider logo
SEYANG MECHATRONICS

Rotary damper, Voltex tube, Air cooling machine, Air knife, Stopper cylinder, Buffer, In line filter

Problem with product info?
Update request
Manufacturer
SEYANG MECHATRONICS
Brand
-
SKU
139625
Product Name
산업용 충격 완충기 (다공오리피스 고정식)
Model Name
FS-2006L-S, FS-2506L-S, FS-2706L-S
Size
-
Weight
-
Product Details





수치표

모델 A B C D E F G H I J
FS-2006L-S M20X1.5 6 55 49 43 6 6 27.7 8 24
FS-2506L-S M25X1.5 6 55 49 43 6 8 37 10 32
FS-2706L-S M27X1.5 6 55 49 43 6 8 37 10 32





사양

형식 FS-2006L-S FS-2506L-S FS-2706L-S
최대흡수에너지 J(kgf/m) 7.8(0.9) 11.7(1.2) 15.6(1.6)
스토로그(mm) 6 6 6
최대등가질량(kg(kgf)) 60(60) 90(90) 120(120)
충돌속도범위(m/s) 0.3~1 0.3~1 0.3~1
최대항력치(N(kgf)) 3920(400) 5680(600) 7840(800)
최대사용사이클 (cycle/min) 60 60 60
1분당 (J(min)) 78 117 156
최대 흡수에너지 (kgf m/min) 8.0 12 16
피스톤로드복귀력(N(kgf)) 16.7(1.7) 19.6(2.0) 22.6(2.3)
사용온도범위 (℃) -5~70 -5~70 -5~70
질량(S Type) (g) 114 210 221





형식표시방법
