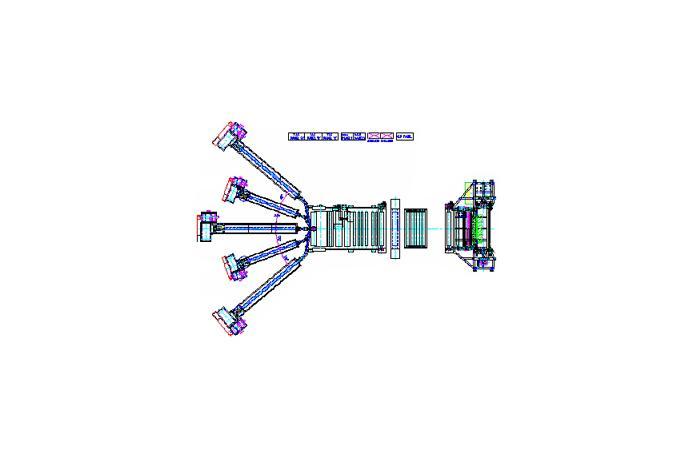

SINGLE & MULTI - LAYER Co-EXTRUSION CAST FILM M.F.G LINE

This Cast film production line is suitable for high functional and multi purpose film processing. Single & Multi layer cast film system is able to produce a wide variety of high clearer film with best optical features and greater out-put levels. System include Extruders, Feed block, T-Die equipped with an unique manual or automatic adjustment devices, Forming and Cooling roller in 2 or 3 polishing rollers, Winding units depending on final film features and Control system for process optimization and minimal scrap. In case of Non-standard film like special application, it’s necessary to meet and consult with us.

▶ Applicable Uses

- Warp, Stretch Film

- Masking, Laminating film

- Diaper and Breakable film

- Vacuum package for food and meat

- Package materials for Electrical and Electronic parts

- Application to industry and special purpose

▶ Standard Specification

- Resin : LLD/LDPE, HDPE, PP, PS, PET, EVA, NYNON, EVOH, TPU, PC, Etc.

- Film Thickness : 0.02 ~ 0.25mm

- Film Width : Max 3,000mm

- Extrusion capacity : 600kg / Hr

- It’s sure that Winding of final products is also very important one of all process, Quality of film is sometimes determined at the status of winding so that we, ShinKwang Eng Co.,Ltd, are supplying 3 types of winding machines, Auto Turret Gap / Centering Winder , Auto Surface Winder and Shaft roll winder.

◎ Auto Turret Gap / Centering Winder

- No happen any kind of “Air pocket” when winding even thinner and tacky film as well as E.V.A film.
- Winding by using “GAP” funtion can wind easily with minute tension, Roll is perfect during unwinding at the next process because winded with taper tension.
- Operation as well as Maintenance easily and simply.

◎ Auto Surface Winder

- Operation as well as Maintenance easily and Simply.
- Price is Less than Turret gap winder.
- Recommended it’s necessary for big winding.
