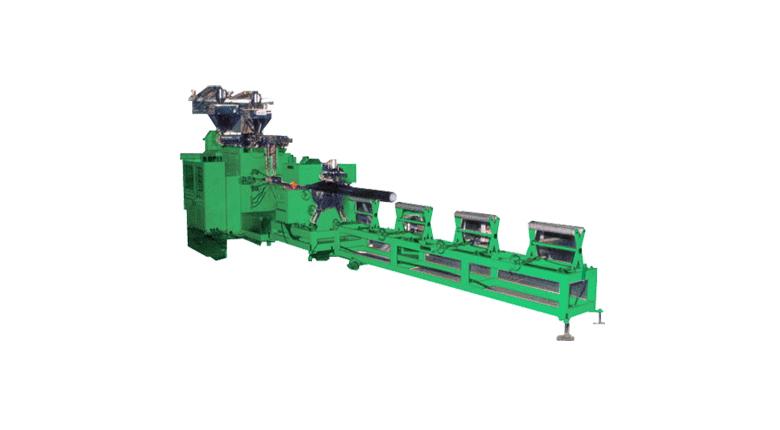

Pipe Manufacturing Line (Rigid PVC & PPC Pipe)
▶ Features
- This machine produce various pipes using the mater ial PP,PE, PPC, PVC, Teflon, Nylon Etc continu ously at high speed. The Pipe size Ø10 to Ø500 depending on the application and material.
▶ Specifications
- Applicable Materials : PVC, PPC, PE, PP, TEFION, NYLON, Etc.
- Extrusion Output : Max 600kg/Hr
- Pipe Diameter : Ø10~500mm
Double Wall Sawage M.F.G Line
▶ Features
- Light weight and flexibility are very attractive properties. Especially the weight is only about 1/8 that of steel enabling easy handing and lower transportation costs. The product may be thermally fused together for the most tight and economical joint, with no possibility of any leakage from the joint area.
▶ Specifications
- Double wall pipe line
- Applicabel resin : HDPE
- Avaliable diameter : Ø200mm ~ Ø1,600mm
- Machine speed : 0.2 ~ 3.0 m/min
- Extrusion capacity : 160 ~ 350 kg/Hr
- Cutting method : Circular saw cutting
▶ Applicable Uses
- Sewage management
- Drainage works
- Agricultural works
- Waste water disposal plant
- Industrial use piping
- Chemicals management
