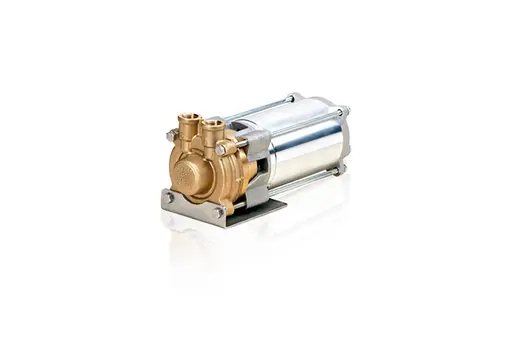

Regenerative turbine electric pumps for cutting and welding
Model
Series
-
Transaction Process
Please contact the manufacturer/supplier.
Payment
Contact the manufacturer/supplier.
Delivery
Contact the manufacturer/supplier.
Shipment
Contact the manufacturer/supplier.
Origin
Contact the manufacturer/supplier.
Description
| NAME | TYPE | P2 (KW) 50HZ / 60HZ |
Q MAX 50HZ | H MAX 50HZ | DN |
|---|---|---|---|---|---|
| KN37 DC | DC 24V | 0.17 | 12 | 37 | 1/4G |
| KNP37 DC | DC 24V | 0.17 | 12 | 37 | 1/4G |
| KN37 MD DC | DC 24V | 0.17 | 12 | 37 | 1/4G |
CHARACTERISTICS
- Continuous duty S1.
- 2 pole motor.
- Insulation class F.
- Protection IP42 (IP 54 on demand).
- IE3 efficiency class for 3-phase motors >0.75 kW.W
- orking tolerance: +/- 10%.
- Liquid temperature (with anti-freeze additive): -20 °C / +90 °C.
- Limit ambient temperature : +40 °C.
- Normal priming, manometer suction up to 5m.
- For clear waters/oils and non-aggressive dilutions, without abrasive substances.
Hydraulic characteristics for water 20°C at nominal pump speed. Tolerance according ISO 9906-2012
ON REQUEST
- Special voltages.
- 60Hz version.
- Dual-frequency.
- Special fluids with temperature <180°C.
- UL/CSA.
MATERIALS
- Casing CuZn / RYTON
- Impeller CuZn / PEEK
- Shaft AISI420
WEIGHT
- KN37 DC - 2.4 Kg
- KNP37 DC - 2.2 Kg
- KN37 MD DC - 2.5 Kg
IN ACCORDANCE WITH
- EN 60034-1
- EN 60034-30
- EN 60335-1
- EN 60335-2-41
DIMENSIONS
HYDRAULIC PERFORMANCE
