Screw Bulkhead Connector

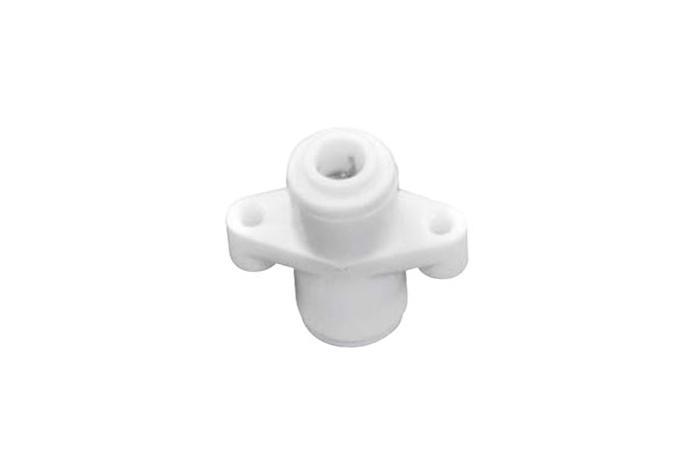

Screw Bulkhead Connector

Model Name

ST-4003W

Series

Fitting

View AllView All Series

Data

Manufacturer information

STORMTEC

Water purifier parts manufacturer, Tubing, Reducing valve, One touch fitting and more

Inquiry

How to order

Problem with product info?

Update request

Manufacturer

STORMTEC

Brand

SKU

35832

Product Name

Screw Bulkhead Connector

Model Name

ST-4003W, ST-4003G

Size

Weight

Product Details

White

COLOR	CODE	TUBE SIZE	TUBE SIZE	PACKAGE 1 PACK	PACKAGE 1 BOX
WHITE	ST-4003W	1/4″ OD	1/4″OD	300EA	1,200EA

gray

COLOR	CODE	TUBE SIZE	TUBE SIZE	PACKAGE 1 PACK	PACKAGE 1 BOX
GRAY	ST-4003G	1/4″ OD	1/4″OD	300EA	1,200EA

GENERAL SPECIFICATION

ㆍOne Touch Fitting (ST fitting) has been widely used in various ranges of potable appliances. ST fittings offered in sized 1/4″ to 1/2″ and manufactured with POM and NBR materials.

ㆍThe products’ safety is certified for achieving the NSF 51&61.

ㆍIt’s easy to connect/disconnect without using a tool.

Note

It is not recommended for explosive gages, heating system and othre pretroleum products.

WORKING TEMPERATURE & PRESSURE

	1/4″	5/16″	3/8″	1/2″
1℃ (34°F)	15.5 bar (230psi)	15.5 bar (230psi)	11.5 bar (170psi)	11.5 bar (170psi)
20℃ (68°F)	15.5 bar (230psi)	15.5 bar (230psi)	11.5 bar (170psi)	11.5 bar (170psi)
65℃ (149°F)	10.0 bar (150psi)	10.0 bar (150psi)	6.9 bar (100psi)	6.9 bar (100psi)

Notice

ㆍBefore connecting the tubing into the fitting, make sure the end of the tubing must be cut vertically an must not be damaged/scratched.

ㆍFitting and tubing are recommended using at the potable appliances. Or, the advice from STORMTEC is necessary before the fitting & tubing equipped into a machine.

ㆍMake sure the pressure in the machine has been removed before disconnecting hte fitting and tubing.

ㆍDo not retate, twist, bend and force the fitting and tubing. those excess can cause a malfuncting, leaking and potential defect.

ㆍWe recommend using a fitting spanner while the user disconnects fitting and tubing.

ㆍWe guarantee the fitting and tubing for 2years and it must be changed within the period.

ㆍWe recommend to cut the scratched tubing and reuse it with spotless condition

STORMTEC

Water purifier parts manufacturer, Tubing, Reducing valve, One touch fitting and more

The Stormtec has been manufacturing and developing various range of potable appliance components and has been supplied high-quality products to the world water purification industry since its foundation in 1999. From its humble beginning of business, we do our best to provide the high quality goods. Now, it has since grown to have more than 100 employees serving the international market for fittings, faucets, valves for water purifier and other home appliances. Even though we grow up and adopt the automatic manufacturing system, we haven’t given up the first priority, the Quality. We promise providing the finest products to all customers. You are the first. Our success is behind yours.
