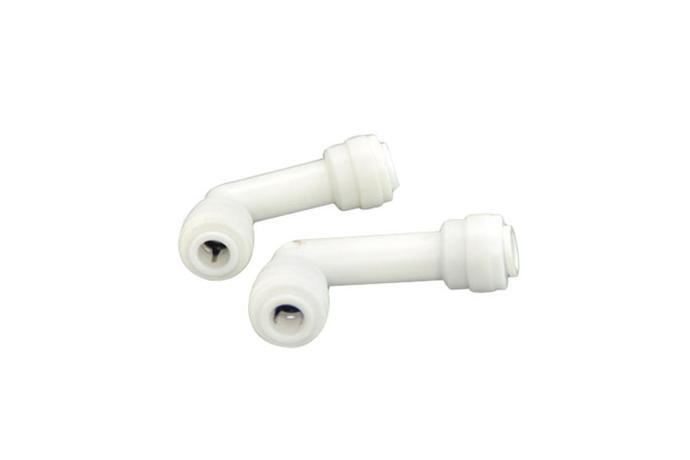

105º / 40MM ELBOW

105º / 40MM ELBOW

Model Name

ST-1000W

Series

Fitting

View AllView All Series

Data

Manufacturer information

STORMTEC

Water purifier parts manufacturer, Tubing, Reducing valve, One touch fitting and more

Inquiry

How to order

Problem with product info?

Update request

Manufacturer

STORMTEC

Brand

SKU

35843

Product Name

105º / 40MM ELBOW

Model Name

ST-1000W, ST-1040W, ST-1000G, ST-1040G

Size

Weight

Product Details

White

COLOR	CODE	TUBE SIZE	TUBE SIZE	PACKAGE 1 PACK	PACKAGE 1 BOX
WHITE	ST-1000W	1/4″ OD	1/4″ OD	400EA	1,600EA
WHITE	ST-1040W	1/4″ OD	1/4″ OD	400EA	1,600EA

gray

COLOR	CODE	TUBE SIZE	TUBE SIZE	PACKAGE 1 PACK	PACKAGE 1 BOX
GRAY	ST-1000G	1/4" OD	1/4" OD	400EA	1,600EA
GRAY	ST-1040G	1/4" OD	1/4" OD	400EA	1,600EA

GENERAL SPECIFICATION

ㆍOne Touch Fitting (ST fitting) has been widely used in various ranges of potable appliances. ST fittings offered in sized 1/4″ to 1/2″ and manufactured with POM and NBR materials.

ㆍThe products’ safety is certified for achieving the NSF 51&61.

ㆍIt’s easy to connect/disconnect without using a tool.

Note

It is not recommended for explosive gages, heating system and othre pretroleum products.

WORKING TEMPERATURE & PRESSURE

	1/4″	5/16″	3/8″	1/2″
1℃ (34°F)	15.5 bar (230psi)	15.5 bar (230psi)	11.5 bar (170psi)	11.5 bar (170psi)
20℃ (68°F)	15.5 bar (230psi)	15.5 bar (230psi)	11.5 bar (170psi)	11.5 bar (170psi)
65℃ (149°F)	10.0 bar (150psi)	10.0 bar (150psi)	6.9 bar (100psi)	6.9 bar (100psi)

NOTICE

ㆍBefore connecting the tubing into the fitting, make sure the end of the tubing must be cut vertically an must not be damaged/scratched.

ㆍFitting and tubing are recommended using at the potable appliances. Or, the advice from STORMTEC is necessary before the fitting & tubing equipped into a machine.

ㆍMake sure the pressure in the machine has been removed before disconnecting hte fitting and tubing.

ㆍDo not retate, twist, bend and force the fitting and tubing. those excess can cause a malfuncting, leaking and potential defect.

ㆍWe recommend using a fitting spanner while the user disconnects fitting and tubing.

ㆍWe guarantee the fitting and tubing for 2years and it must be changed within the period.

ㆍWe recommend to cut the scratched tubing and reuse it with spotless condition
