-Easy operating control
-Stable and well-balanced design
-Working pressure : 0.1~9.5 bar (1.5~135 psi)
-Maximum handle torque : 0.2 N_M

GENERAL SPECIFICATION

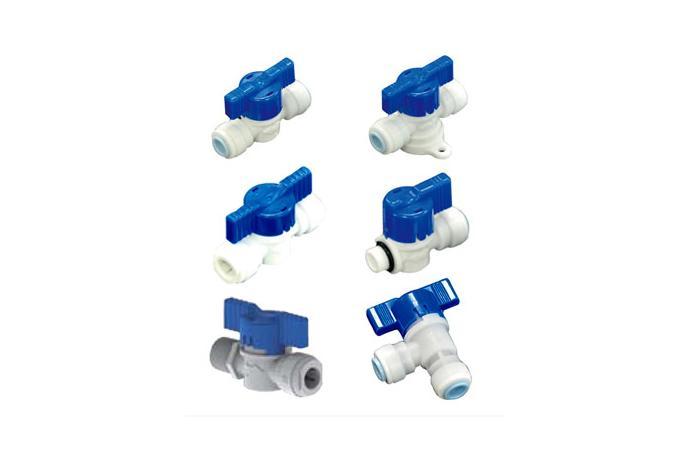

ㆍOne Touch Fitting (ST fitting) has been widely used in various ranges of potable appliances. ST fittings offered in sized 1/4″ to 1/2″ and manufactured with POM and NBR materials.

ㆍThe products’ safety is certified for achieving the NSF 51&61.

ㆍIt’s easy to connect/disconnect without using a tool.

Note

It is not recommended for explosive gages, heating system and othre pretroleum products.

WORKING TEMPERATURE & PRESSURE

NOTICE

ㆍBefore connecting the tubing into the fitting, make sure the end of the tubing must be cut vertically an must not be damaged/scratched.

ㆍFitting and tubing are recommended using at the potable appliances. Or, the advice from STORMTEC is necessary before the fitting & tubing equipped into a machine.

ㆍMake sure the pressure in the machine has been removed before disconnecting hte fitting and tubing.

ㆍDo not retate, twist, bend and force the fitting and tubing. those excess can cause a malfuncting, leaking and potential defect.

ㆍWe recommend using a fitting spanner while the user disconnects fitting and tubing.

ㆍWe guarantee the fitting and tubing for 2years and it must be changed within the period.

ㆍWe recommend to cut the scratched tubing and reuse it with spotless condition
