GENERAL SPECIFICATION

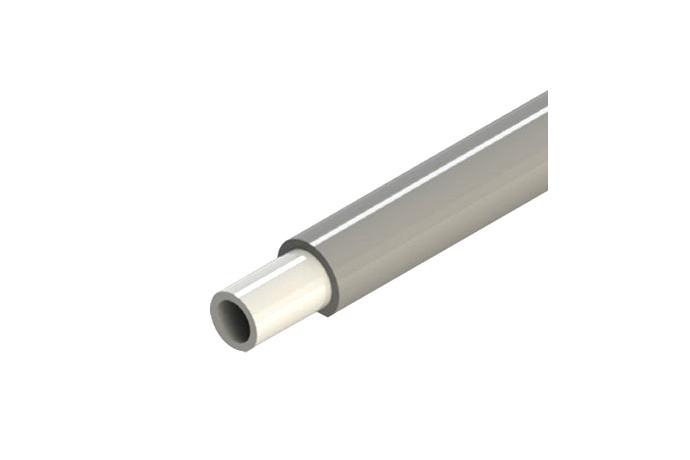

PVC coverage protects inner tubing and makes neat outward form. And, the inner tubing is made with Linear Low Density
Polyethylene (LLDPE) using at the applications containing cold and intermittent hot water.

Note
LLDPE Tubing is not recommended for mineral oil, gas, fuel, high pressure compressed air and pneumatic system.
The compatibility between tubing and fitting must be ensure if the components applied in a cleaning device and other appliances
which contains potentially aggressive liquid.

WORKING TEMPERATURE & PRESSURE

NOTICE

ㆍBefore connecting the tubing into the fitting, make sure the end of the tubing must be cut vertically an must not be damaged/scratched.

ㆍFitting and tubing are recommended using at the potable appliances. Or, the advice from STORMTEC is necessary before the fitting & tubing equipped into a machine.

ㆍMake sure the pressure in the machine has been removed before disconnecting hte fitting and tubing.

ㆍDo not retate, twist, bend and force the fitting and tubing. those excess can cause a malfuncting, leaking and potential defect.

ㆍWe recommend using a fitting spanner while the user disconnects fitting and tubing.

ㆍWe guarantee the fitting and tubing for 2years and it must be changed within the period.

ㆍWe recommend to cut the scratched tubing and reuse it with spotless condition
