product Image

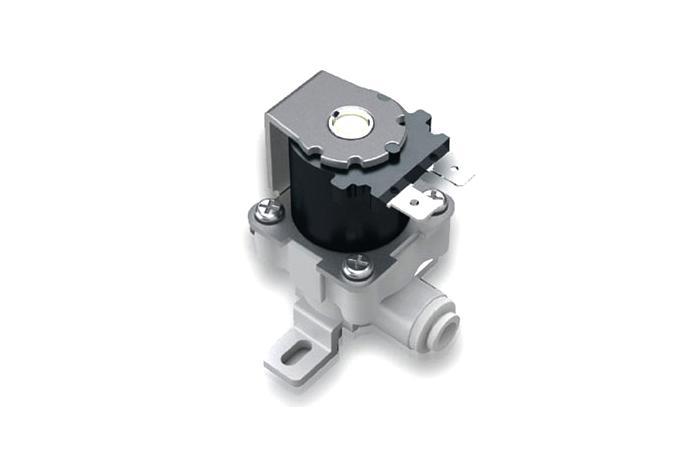

Solenoid Valve
Model Name
HSV-FF
Series
Solenoid Valve
Data
-
Manufacturer information
provider logo
STORMTEC

Water purifier parts manufacturer, Tubing, Reducing valve, One touch fitting and more

Problem with product info?
Update request
Manufacturer
STORMTEC
Brand
-
SKU
35868
Product Name
Solenoid Valve
Model Name
HSV-FF
Size
-
Weight
-
Product Details
WORKING PRESSURE RATED VOLTAGE TOLERANCE
0.2~10bar (3~142psi) DC 12, 24V
AC 110, 220V 50/60Hz
-15~+10 %
INLET PORT OUTLET PORT PACKAGE 1 BOX
1/4“Fitting 1/4“Fitting 100EA



GENERAL SPECIFICATION

The high pressure solenoid valve (HSV) is the pilot type solenoid valve which is suitable for the automatic water feeding system.
Recently, the valve is widely used in potable water appliances such as water purifier, dishwasher and refrigerator.

WORKING PRESSURE

0.2~10bar (3~142psi)

RATED VOLTAGE

DC 12V, 24V
AC 110V, 220V 50/60Hz

TOLERANCE

-15~+10%

HYDRAULIC PRESSURE

19.5bar (277psi)

DUTY TIME

Continuous

WORKING TEMPERATURE

1~40℃ (33~104℉)

AMBIENT TEMPERATURE

Less than 104℉

WIRE INSULATION TYPE

E2UEW (248℃ Urethane Enamel Wire)

VALVE CONSTRUCTION

Pilot type poppet

COIL TEMPERATUREINCREASING

Less than 176℉ in a rated voltage



APPLICATION

Water purifier, Bidet, Boiler, Wall-mounted urinal, Dishwasher, Softener, Washing machine, Refrigerator and other electronic water supplying system.
