WORKING PRESSURE (P1) | REDUCING PRESSURE (P2) | TOLERANCE | RATE FLOW |
---|---|---|---|
0.2~10bar (3~142psi) | 3.0bar (42psi) | ±1 bar | 3.5ℓ/min |
BRACKET | INLET PORT | OUTLET PORT | PACKAGE 1BOX |
X | 1/4“ Fitting | 1/4“ Fitting | 800 EA |
GENERAL SPECIFICATION

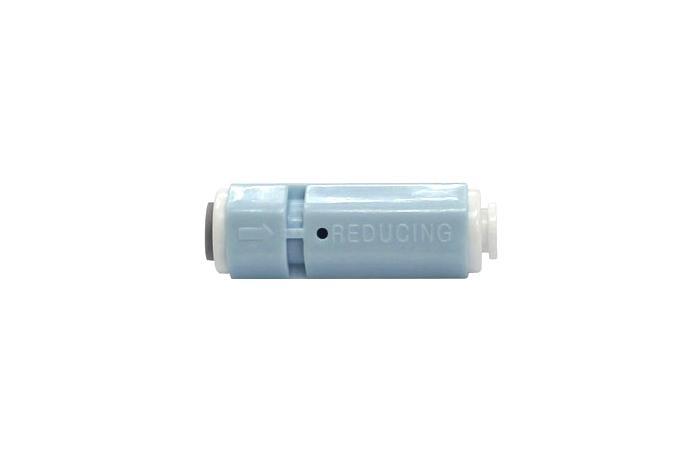

The pressure reducing valve is a function valve regulating and controlling the feed water.
Normally, this valve is equipped in front of filters and protecting the filters by reducing feed water.
WORKING PRESSURE |
0.2~10bar (3~142psi) |
---|---|
REDUCING PRESSURE |
3.0±1bar(42psi) |
RATED FLOW |
Minimum 3.5ℓ/min |
HYDRAULIC PRESSURE |
19.5bar (277psi) |
BURSH PRESSURE |
33.5bar (480psi) |
VALVE CONSTRUCTION |
Spring type |
