product Image
Float Valve
Model Name
BT-KW-200
Series
Float Valve
Data
-
Manufacturer information
provider logo
STORMTEC

Water purifier parts manufacturer, Tubing, Reducing valve, One touch fitting and more

Problem with product info?
Update request
Manufacturer
STORMTEC
Brand
-
SKU
35899
Product Name
Float Valve
Model Name
BT-KW-200
Size
-
Weight
-
Product Details
WORKING PRESSURE (P1) INSTALL POSITION PORT TYPE PACKAGE 1 BOX
0.5~8bar (7~113psi) Vertical 1/4″ Stem 100EA



GENERAL SPECIFICATION

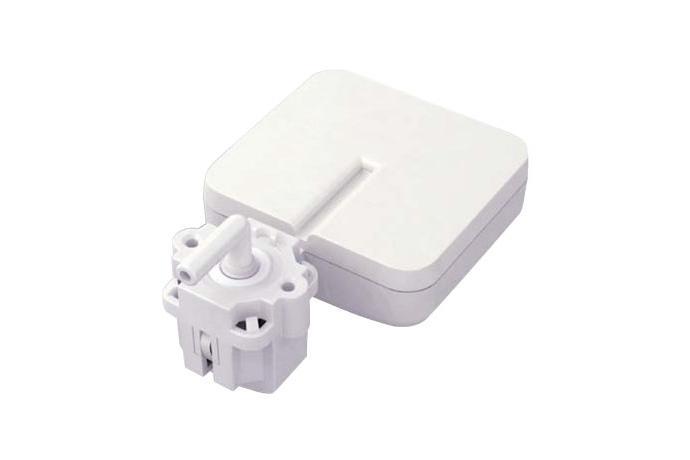

The Float Valve (or Ball-top valve) is a mechanic valve which can be used to control the level of a fluid in a tank
by opening & closing a valve in response to changes in the fluid level.
Compare with a cylindrical float, these rectangular float is widely contacted with water and easy to operate by buoyancy.
The float is made with ABS material.
Flow rate is measured at 3 bar (42psi).

WORKING PRESSURE

0.5~8bar (7~113psi)

HYDRAULIC PRESSURE

3 bar (42psi)

RATED FLOW

1.0ℓ/min (Measured at 3.0bar inlet pressure)

WORKING TEMPERATURE

1~40℃ (33~104℉)

AMBIENT TEMPERATURE

Less than 40℃
