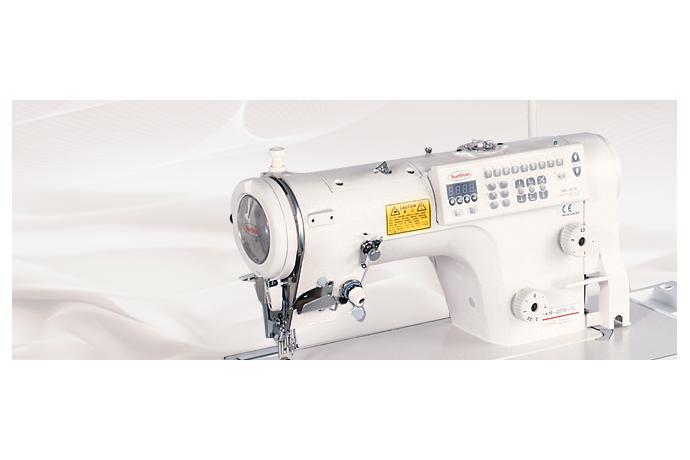

Electronically Controlled, 1-Needle, ZigZag, Lock Stitch Sewing Machine with Automatic Thread Trimmer
Model | Application | Max. sewing speed [spm] | Stitch length [mm] | Needle | Lubrication | Auto thread trimming | Motor | No. of input patterns | No. of input stitches | Zigzag width [mm]] | Lift of the presser foot [mm] | Hook | ||||
Hand | Knee | Auto | Drive type | Position | Size | |||||||||||
KM-2070-7L | light | 5,000 | 0~2.5 | SY 1965 Nm70, DPx5 #10 | Auto | Yes | Servo motor | 99 (Standard 16 / 8kinds) | 256 (1pattern) | 8 / 10 (2Step, 3Step) | 6 | 10 | (7) | Rotary | Vertical | - |
KM-2070-7M | Medium | 5,000 | 0~5 | SY 1965 Nm70, DPx5 #10 | Auto | Yes | Servo motor | 99 (Standard 16 / 8kinds) | 256 (1pattern) | 8 / 10 (2Step, 3Step) | 6 | 10 | (7) | Rotary | Vertical | - |
KM-2070-L | light | 5,000 | 0~2.5 | SY 1965 Nm70, DPx5 #10 | Auto | No | Servo motor | 99 (Standard 16 / 8kinds) | 256 (1pattern) | 8 / 10 (2Step, 3Step) | 6 | 10 | (7) | Rotary | Vertical | - |
KM-2070-M | Medium | 5,000 | 0~5 | SY 1965 Nm70, DPx5 #10 | Auto | No | Servo motor | 99 (Standard 16 / 8kinds) | 256 (1pattern) | 8 / 10 (2Step, 3Step) | 6 | 10 | (7) | Rotary | Vertical | - |
