product Image

TOP

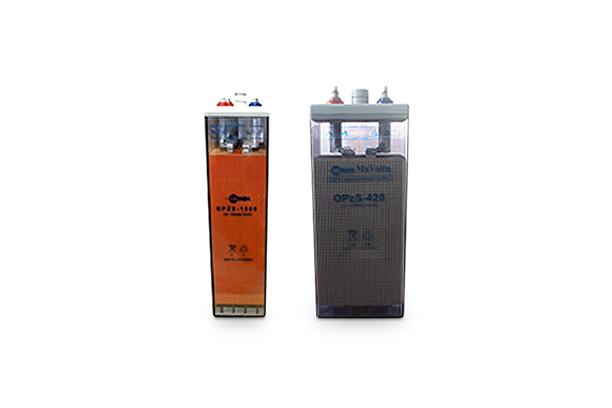

OPzS Battery
Model Name
OPzS300
Series
OPzS Battery
Data
CATALOG-UKB-OPzS Battery
Manufacturer information
provider logo
UKB

Industrial batteries for UPS & Telecommunications, Solar Power System, traction batteries

Problem with product info?
Update request
Manufacturer
UKB
Brand
-
SKU
126357
Product Name
OPzS Battery
Model Name
OPzS300, OPzS600 Cell, OPzS1500, OPzS2250(2C2250Ah)
Size
-
Weight
-
Product Details

OPzS Battery


OPzS flooded tubular single cells is a traditional design complies with International standards. UKB's OPzS battery manufactured with die cast tubular grids and optimised pasted negative plates. These batteries are requires low maintenance, long life service and excellent capacity performance for operating high temperature and can provide a premium efficient and cost effective energy solution.This battery is tubular type in which the active material is packed into parallel microporous tubes containing a central lead-antimony alloy spine. This construction gives high active material efficiency and long cycle life. Vented Tubular Stationary Battery life design is 15 years.



APPLICATION

- Cycling & Floating service
- Oil, Gas and Power Stations
- Telecommunications
- Transmission switching
- Grid services
- Reserve Power
- Renewable Energy Systems



FEATURES

- Long life deep cycle capability
- Accepts high charge rate
- Freezing tolerated
- Balanced Pb-Ca grid for improved recombination efficiency
- Ultrasonic Welding & Tubular plate with die cast Pb-Ca alloy grid
- High microporous Material & Low self-discharge



PRODUCTS RANGES

- 2V : 200Ah ~ 3000Ah / 10Hr
- Electrolyte : High Purity Sulphuric Acid
- 1,500 Cycles At D.O.D 80% Discharge Condition
